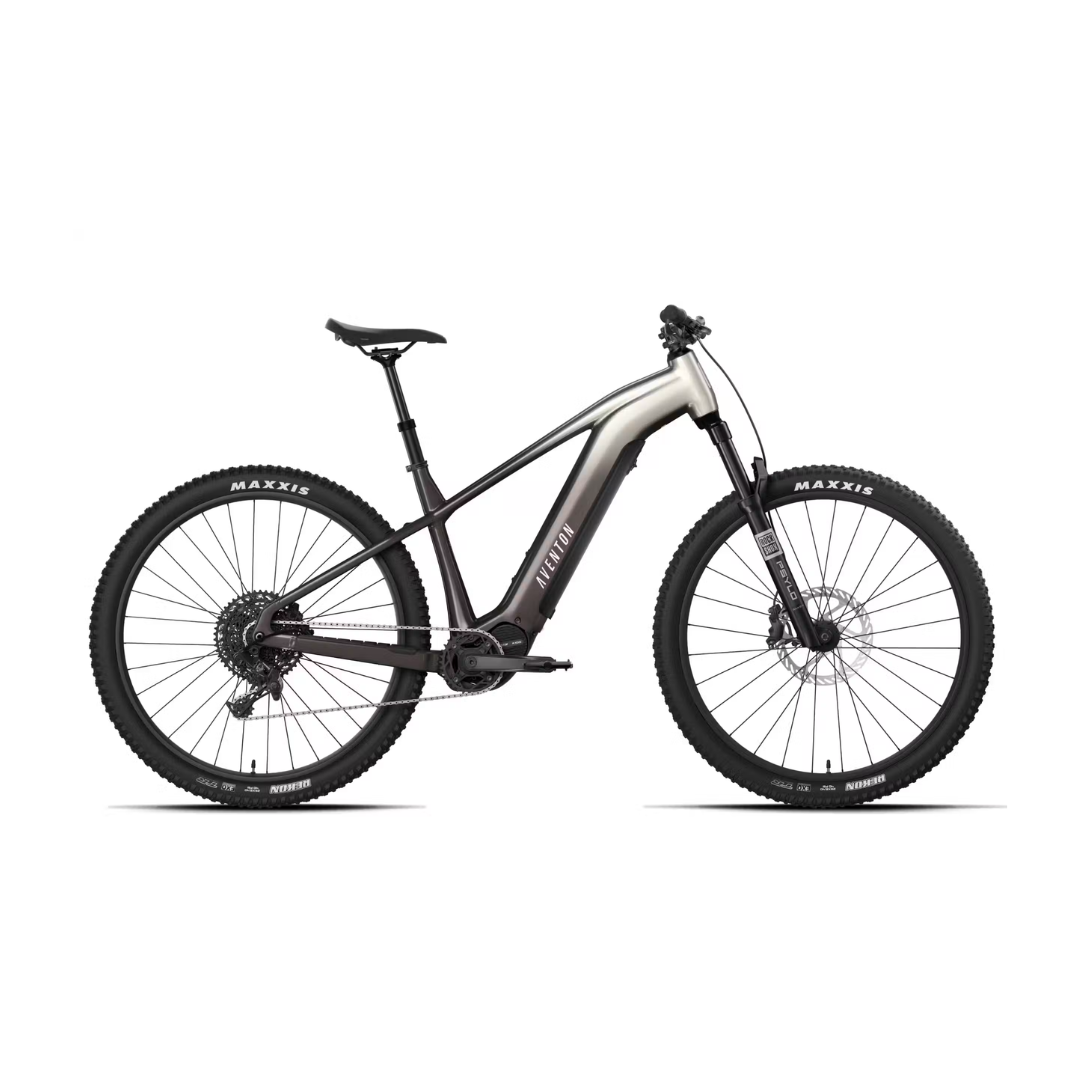

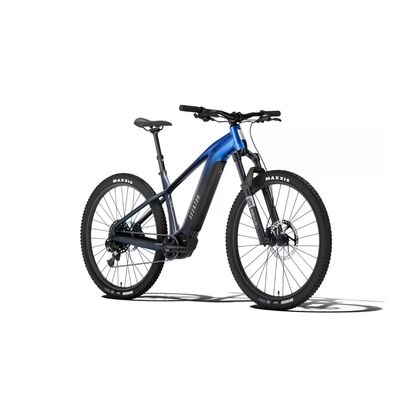

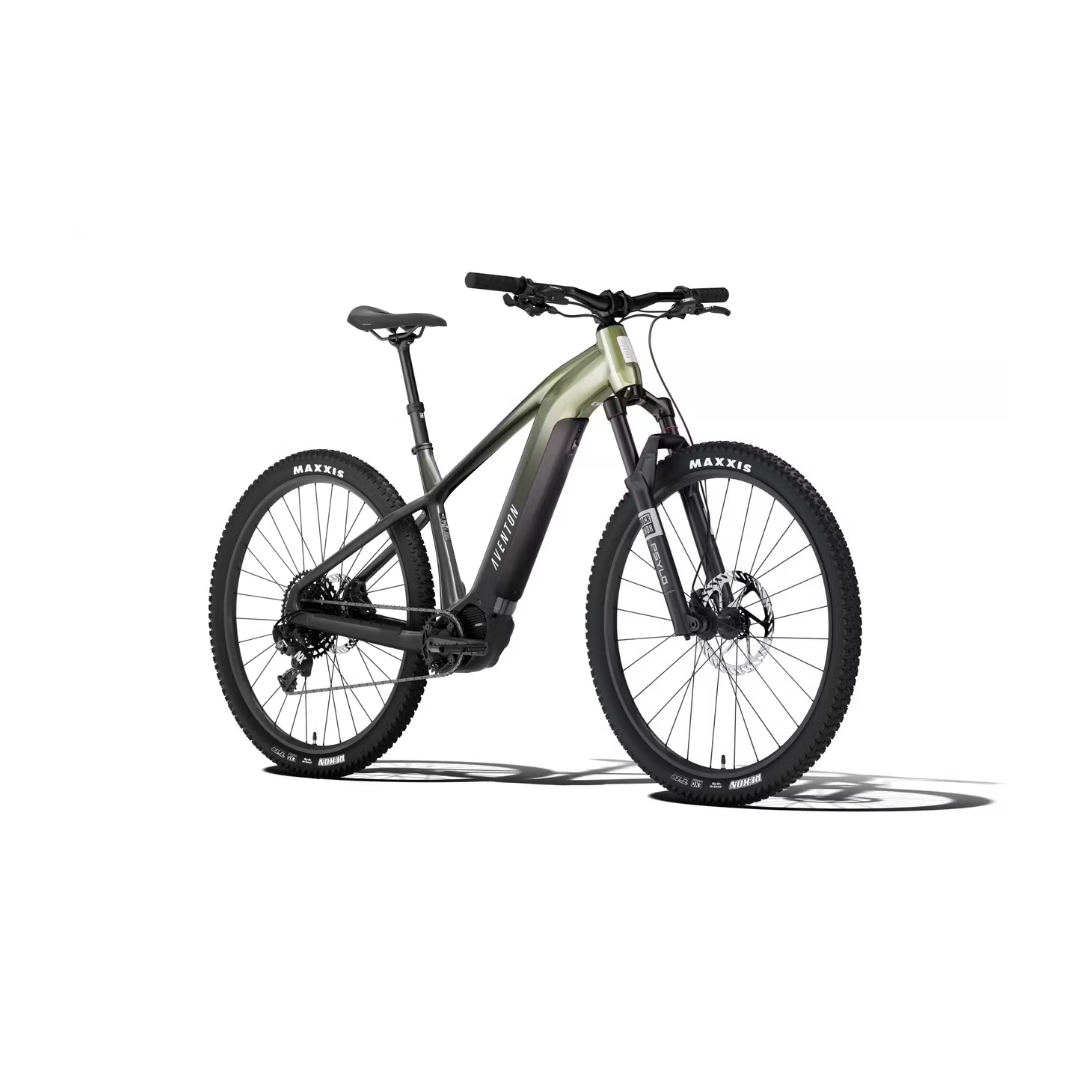

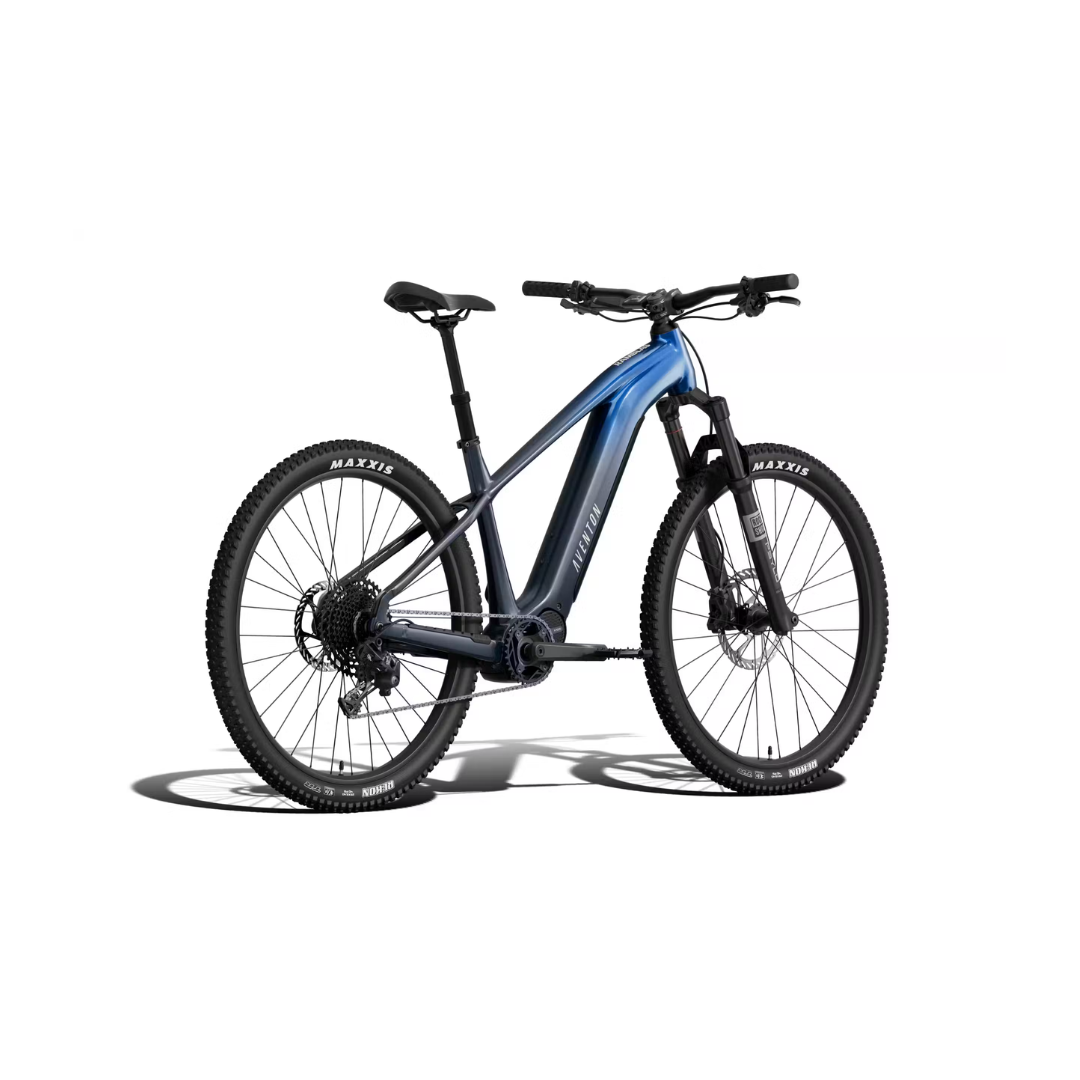

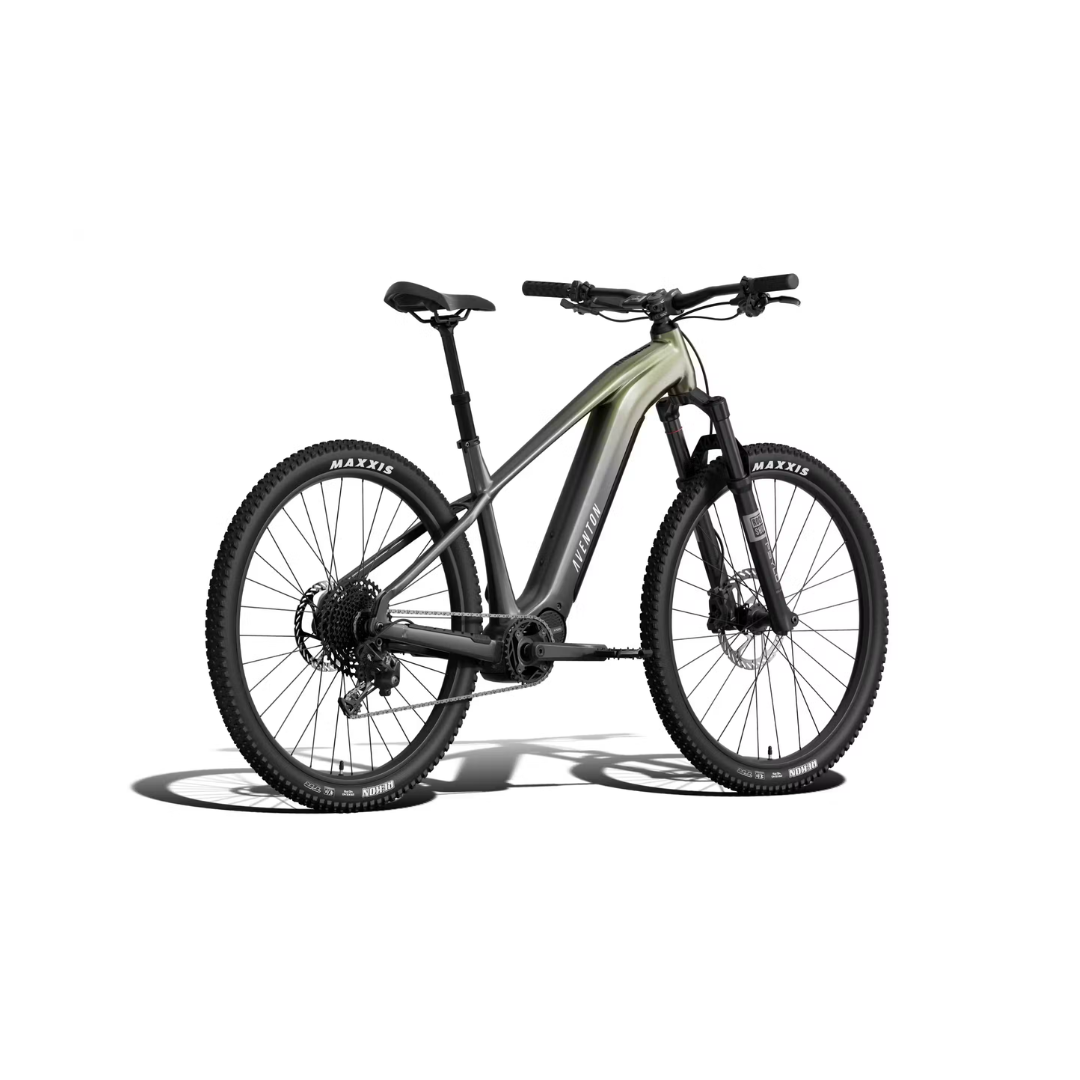

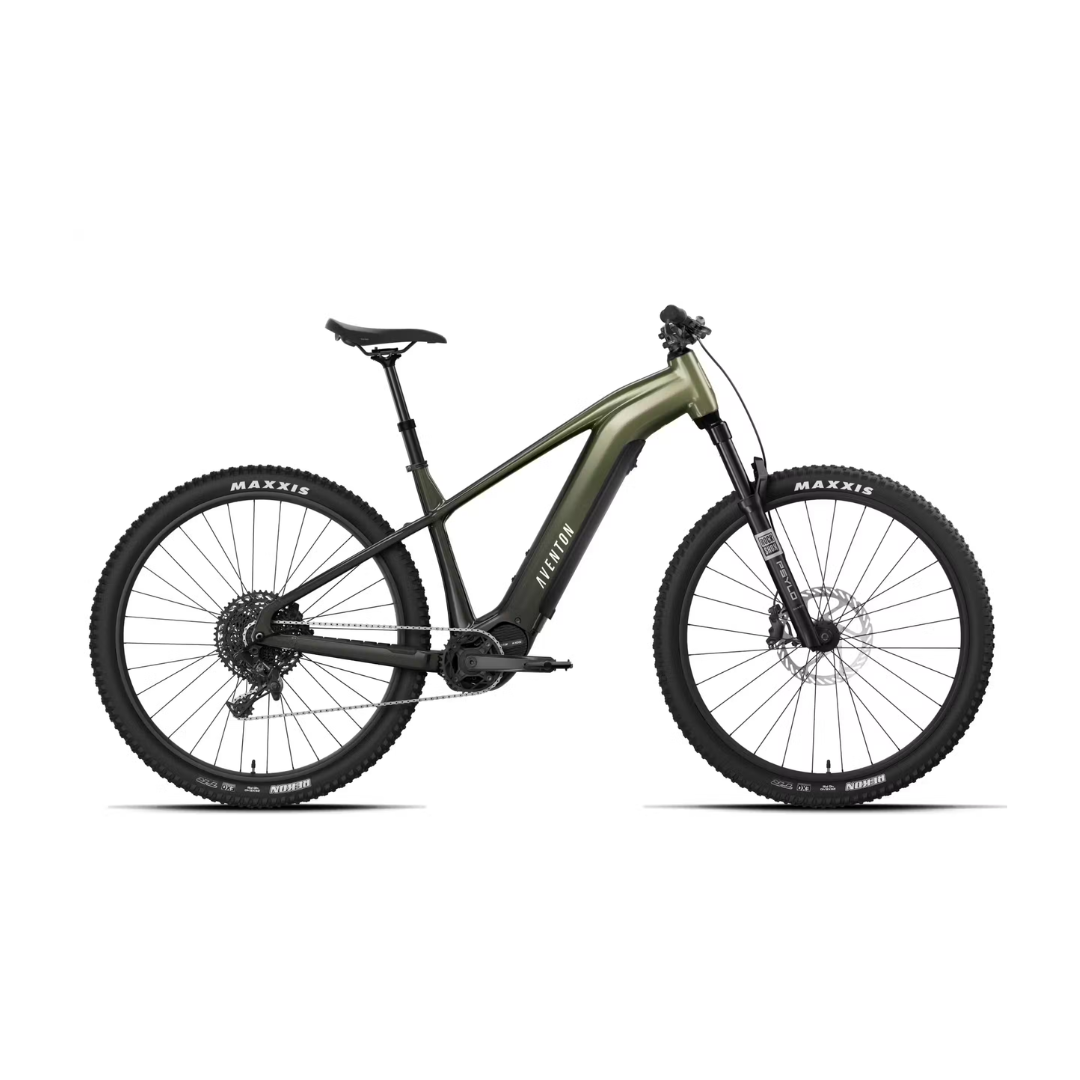

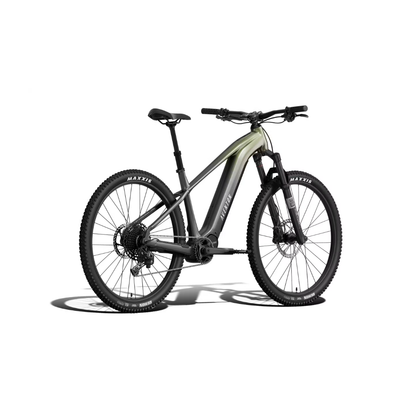

Ramblas ADV Ebike
Carve out the uncommon route with Ramblas ADV, Aventon’s electric hardtail mountain bike. Rugged and reliable, this all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Pursue any adventure with a range of up to 90 miles to roam, ramble, and revel in the dynamic side of the ride.

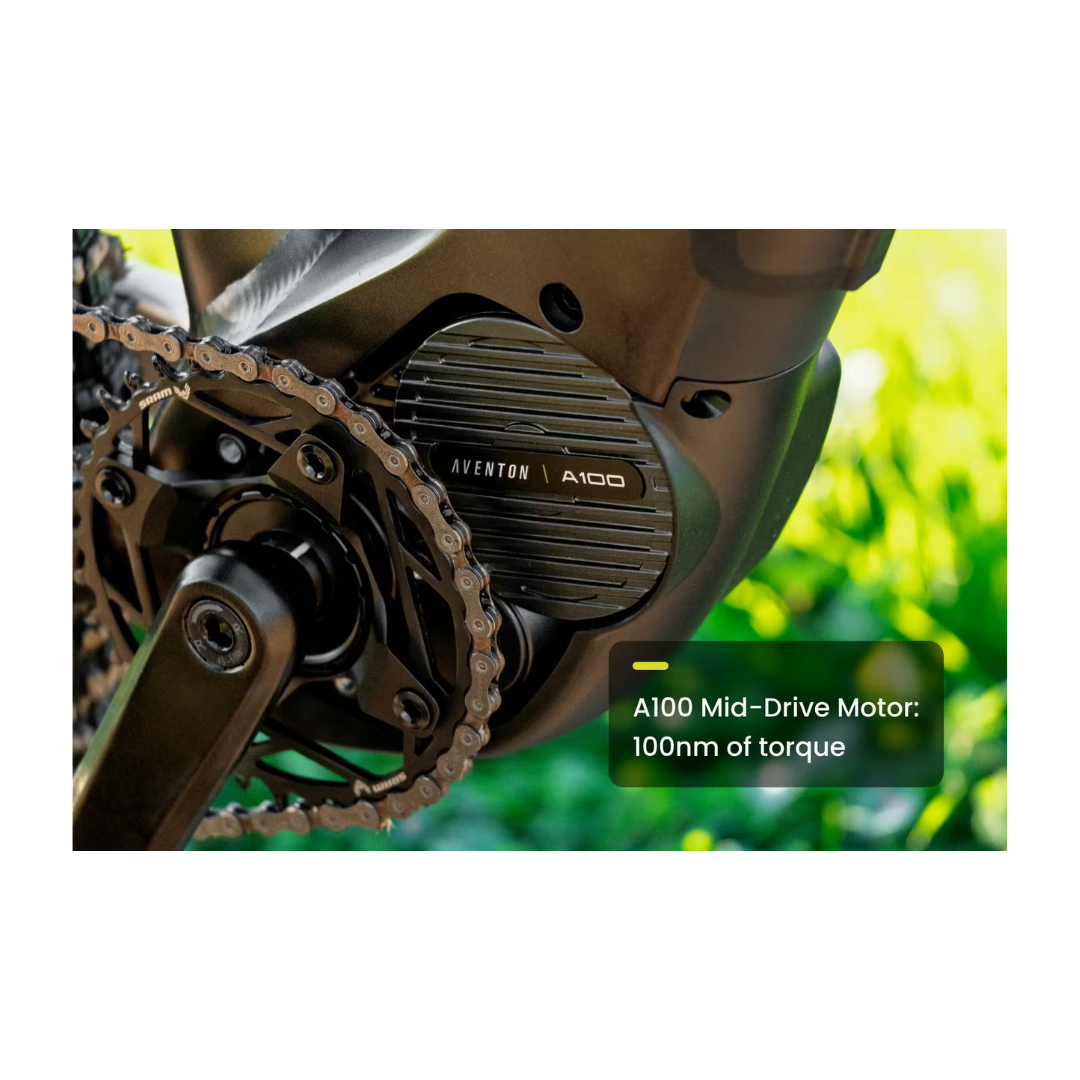

A100 Mid Drive Motor
The A100 mid-drive motor is engineered to enhance your ride with confident and capable motor assistance. With 750W of peak power and a max torque of 100Nm, the A100 is the heart of the Ramblas ADV, enabling you to crush climbs and power through trails with ease.

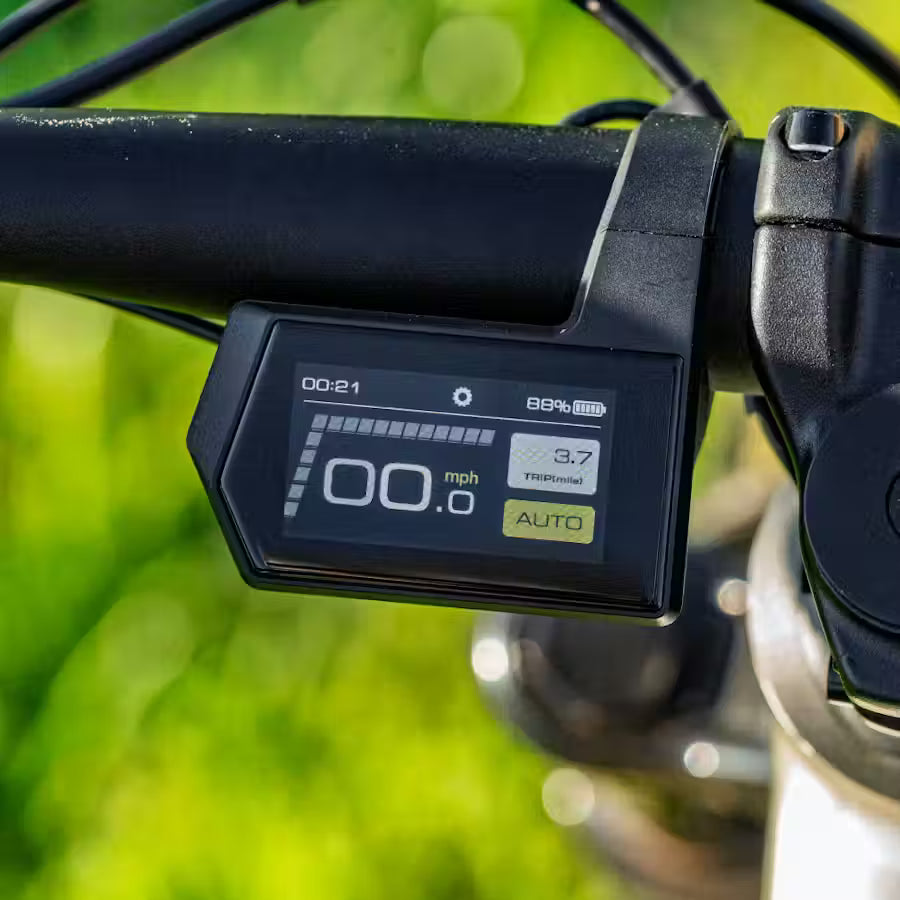

Auto Mode
No need to switch between pedal assist modes, simply switch to AUTO mode and let the Ramblas ADV supply the perfect amount of power based on the slope of the terrain you’re riding. Take advantage of all 100Nm on steep climbs, and automatically dial back on flatter sections.

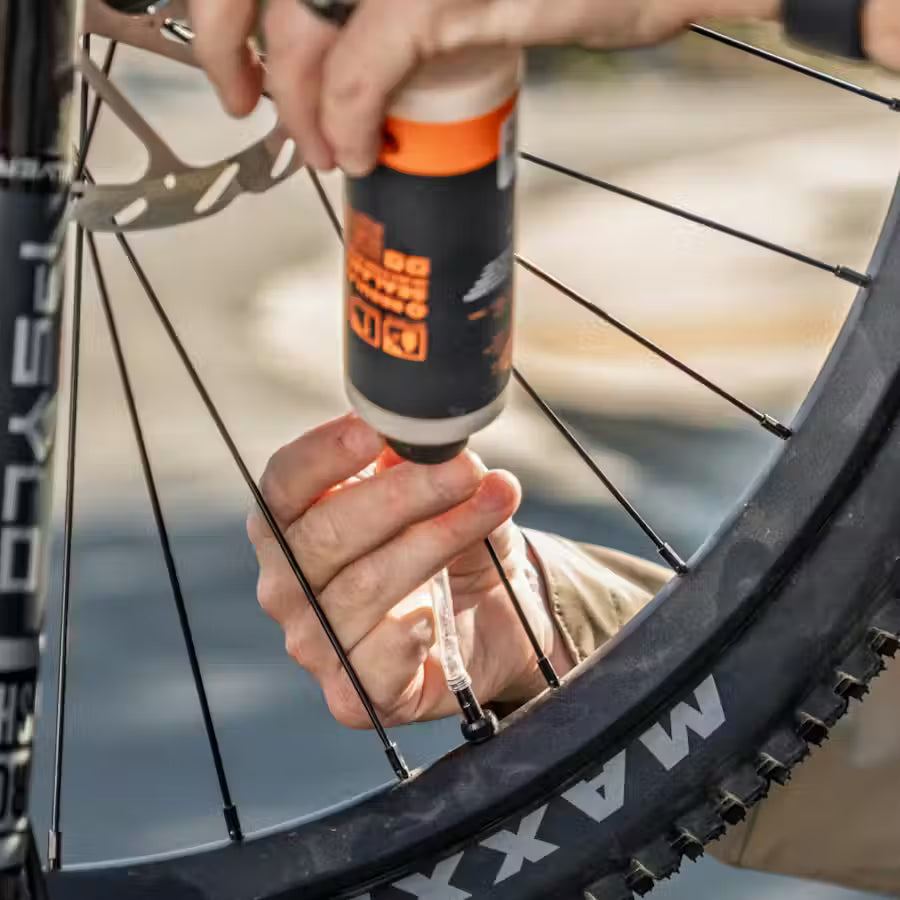

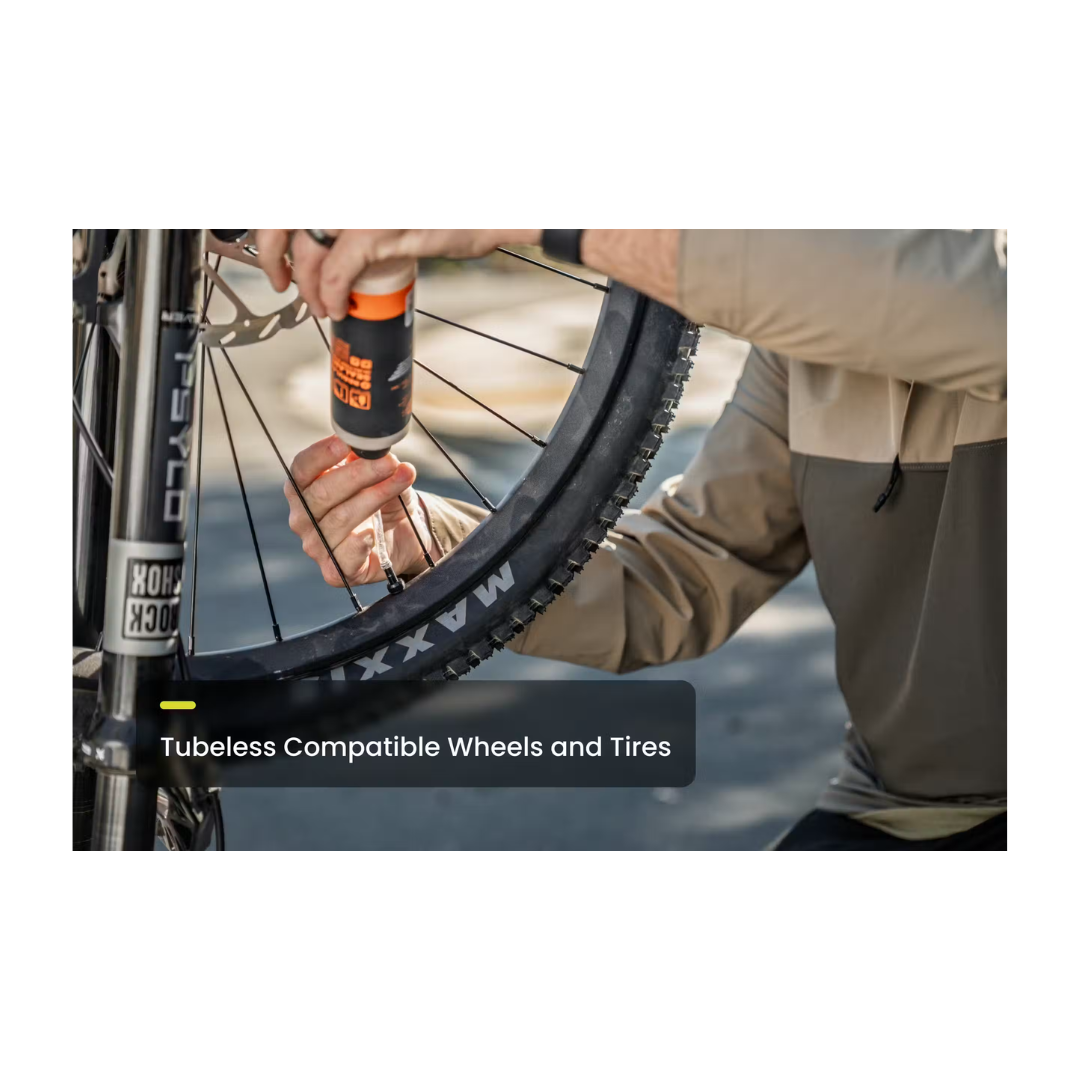

Tubless Compatible Wheels & Tires
Tubeless wheels and tires provide better flat protection, and allow riders to run lower tire pressures for improved traction and comfort on trails.

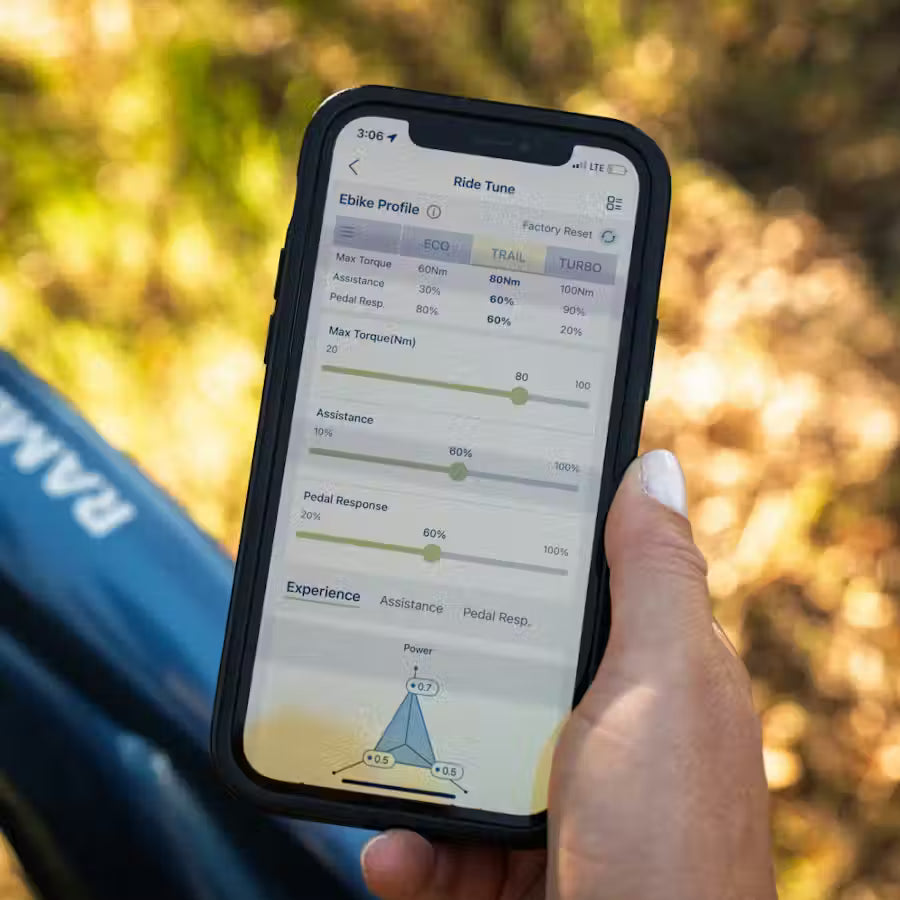

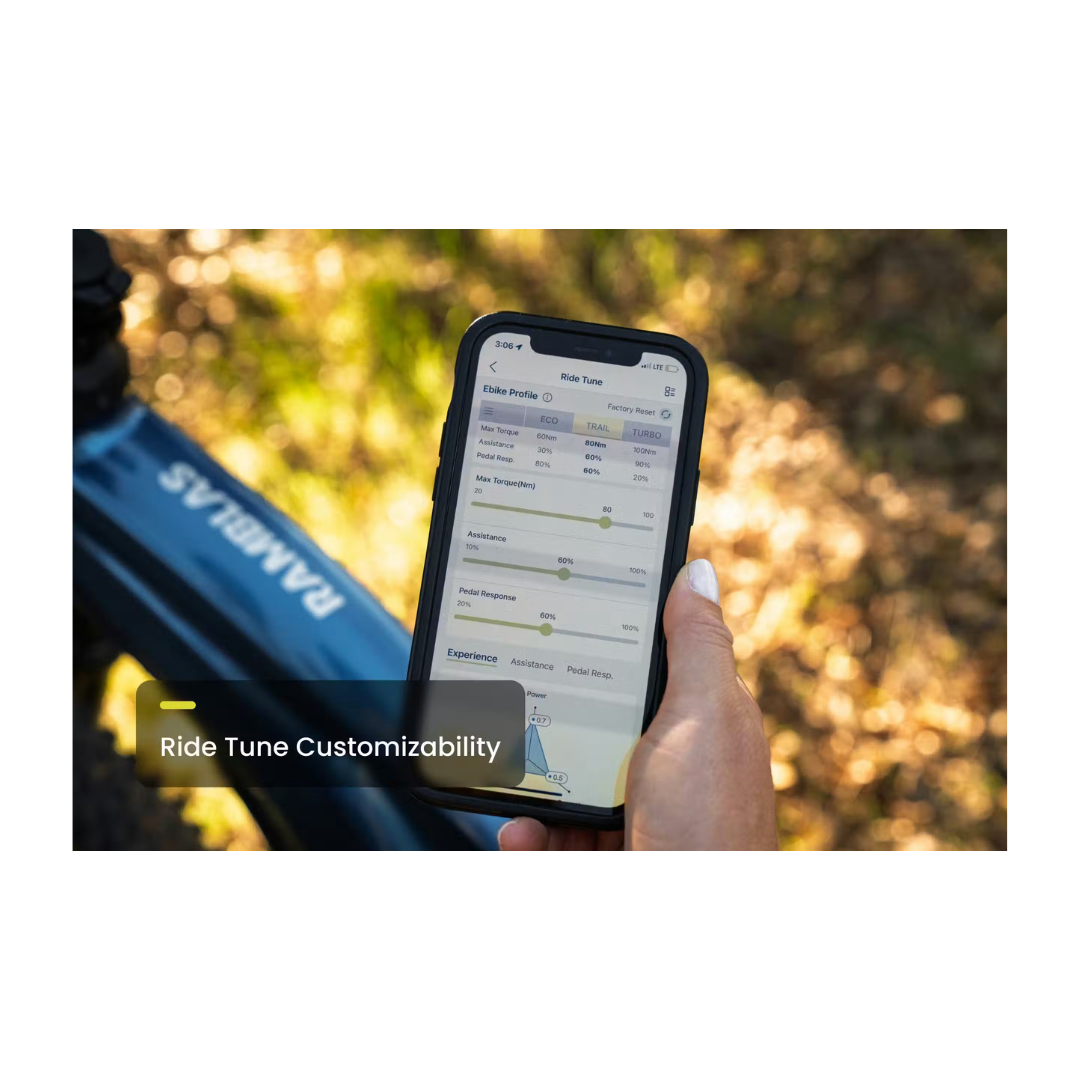

Ride Tune Customization
Ramblas ADV allows you to fine tune each of your pedal assist modes (ECO, TRAIL, TURBO) for a customized ride feel that fits your style and preferences.

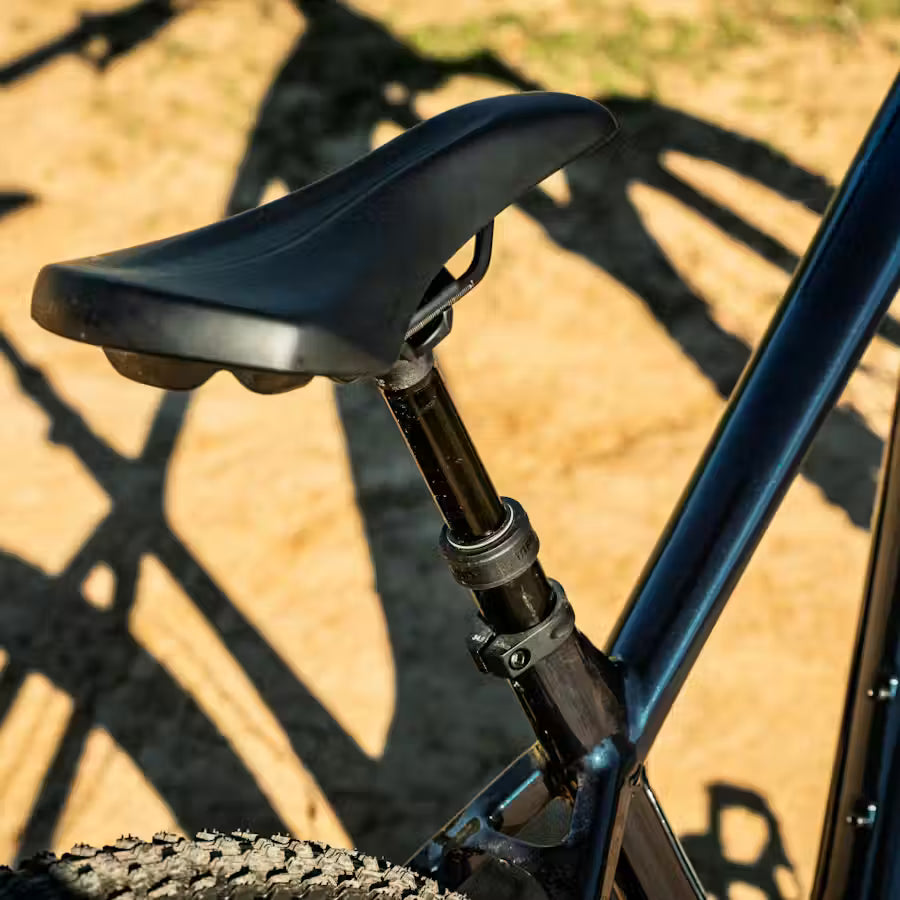

Dropper Seatpost
The updated dropper seatpost offers improved lever actuation and enhances control while navigating steep and technical terrain.

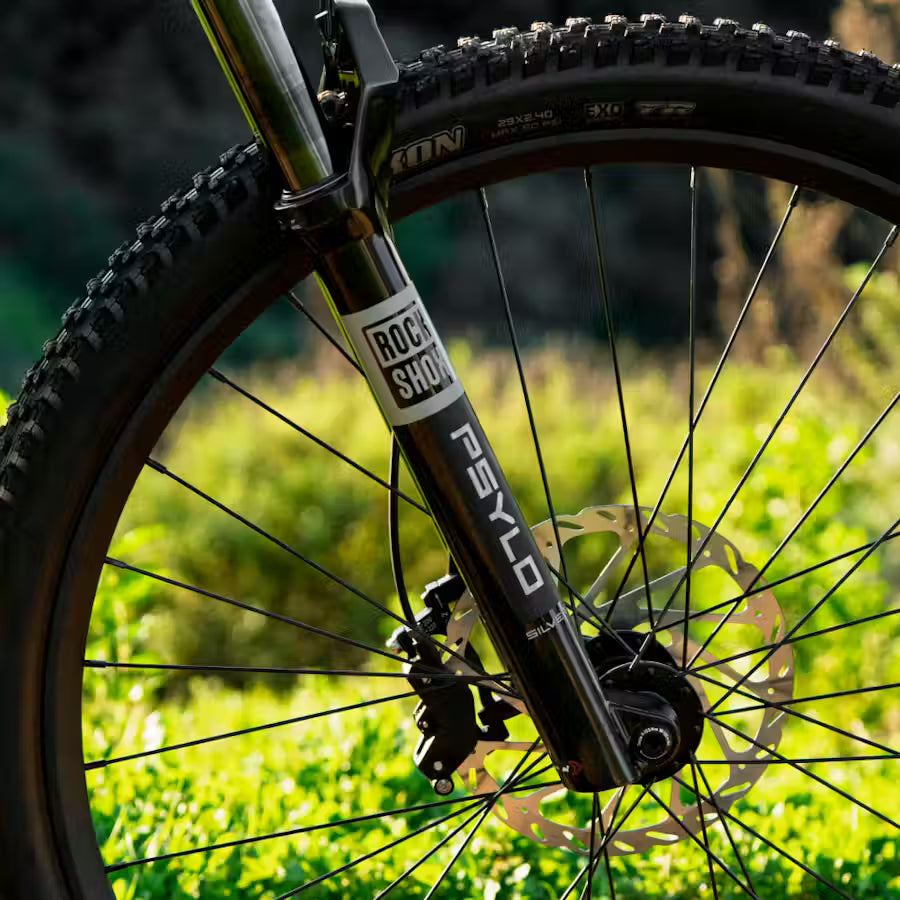

RockShox Psylo Silver Fork
Ramblas's RockShox Psylo coil fork has 130mm of travel for comfort and capability on all your trail adventures.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Technical Specifications
General Info
Model Ramblas ADV Ebike
Weight 54 lbs
Total Weight Limit 300 lbs
Rider Height 5'5" - 6'5"
Water Resistance Bike - IPX6 // Motor - IP67
Range Up to 90 miles
Bike Safety Certifications TUV Certified in accordance with UL 2849 / UL 2271
Battery Safety Certifications TUV Certified in accordance with UL 2849 / UL 2271
Frameset
Frame 6061 Single-Butted Aluminum Alloy
Fork Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
Rear Spacing 12 x 148mm
Fork Spacing 15x110mm
Wheelset
Rear Wheel 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Front Wheel 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Tires Maxxis Rekon 29"x2.4" Tubeless Ready
Ebike System
Speed Class 1
Motor Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Motor Torque 100Nm
Motor Power 250W (750W Peak)
Display Aventon BC201
Battery Aventon 708 WH. 36V LG 21700 cells
Battery Weight 8.44 lbs
Throttle N/A
Sensors Double Sided Torque Sensor Integrated in Motor
Charger 42V 4A charger
Charging time from 0% to 100% 5 hours
Lights Integrated
Brakes
Front Brake SRAM DB6 4-Piston Hydraulic Disc Brakes
Rear Brake SRAM DB6 4-Piston Hydraulic Disc Brakes
Rear Brake Rotor SRAM G2 200mm
Front Brake Rotor SRAM G2 200mm
Drivetrain

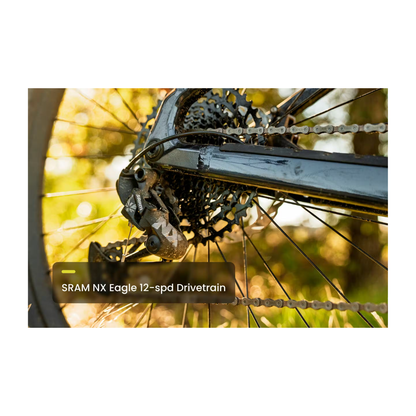

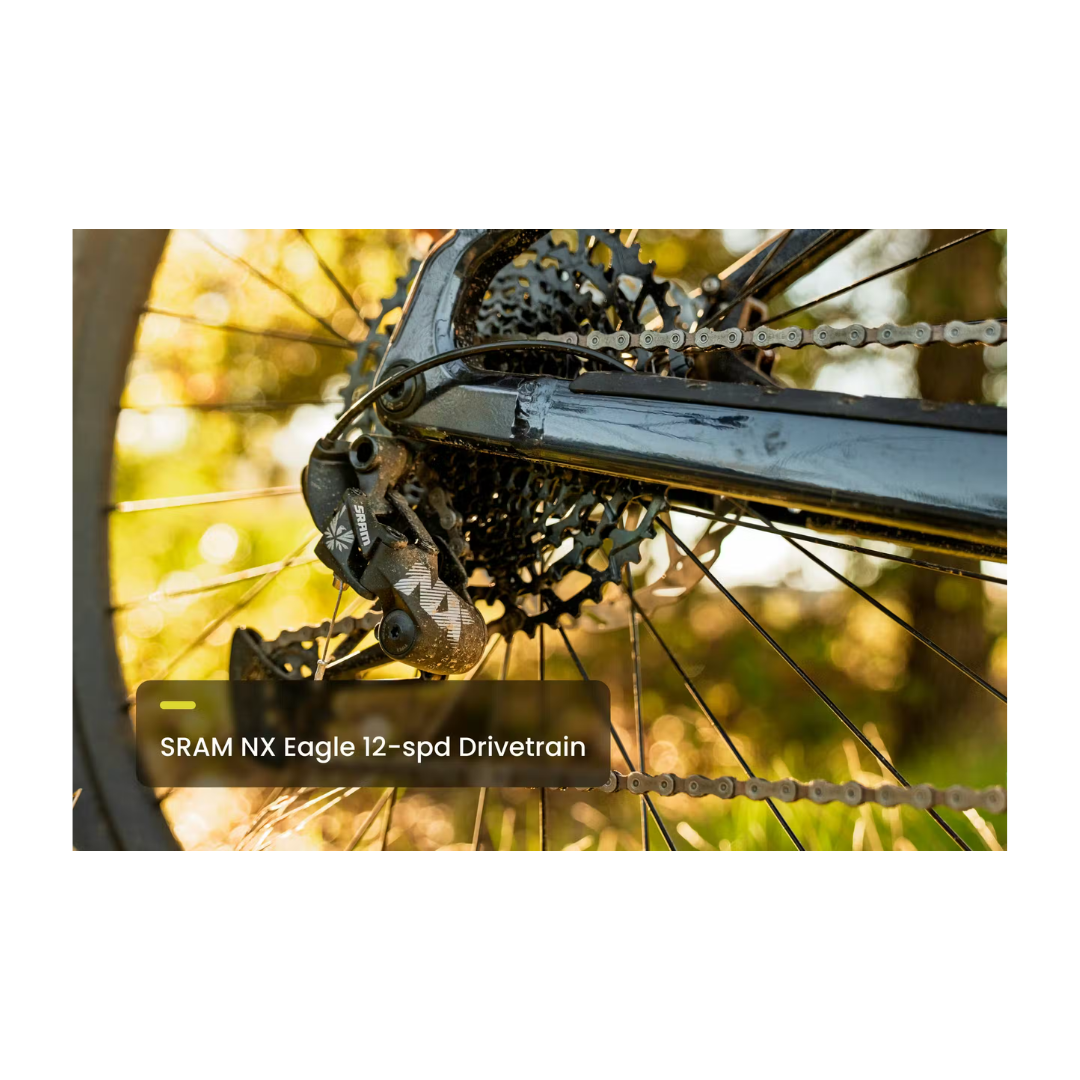

Rear Derailleur SRAM NX 12-Speed
Shifter SRAM NX
Chain SRAM 12-Speed
Cassette SRAM SX 12-Speed 10-50T
Chainring SRAM 34T Chainring BCD104
Crankset 165mm ISIS Splined
Bottom Bracket N/A
Pedals 9/16" Alloy Platform
Cockpit
Saddle Aventon Saddle
Seatpost Manic LC 150mm travel for size M-XL. 31.6mm ø. 395mm length
Seatpost Clamp 34.9mm
Handlebars 760mm width, 35mm clamp diameter, 33mm rise, 3* upsweep, 9* backsweep.
Grips Aventon Lock on grips
Headset T51Ks 28.6*56-56*39.8/ H:23.4mm
Included Accessories
Kickstand, Headlight
Technical Overview

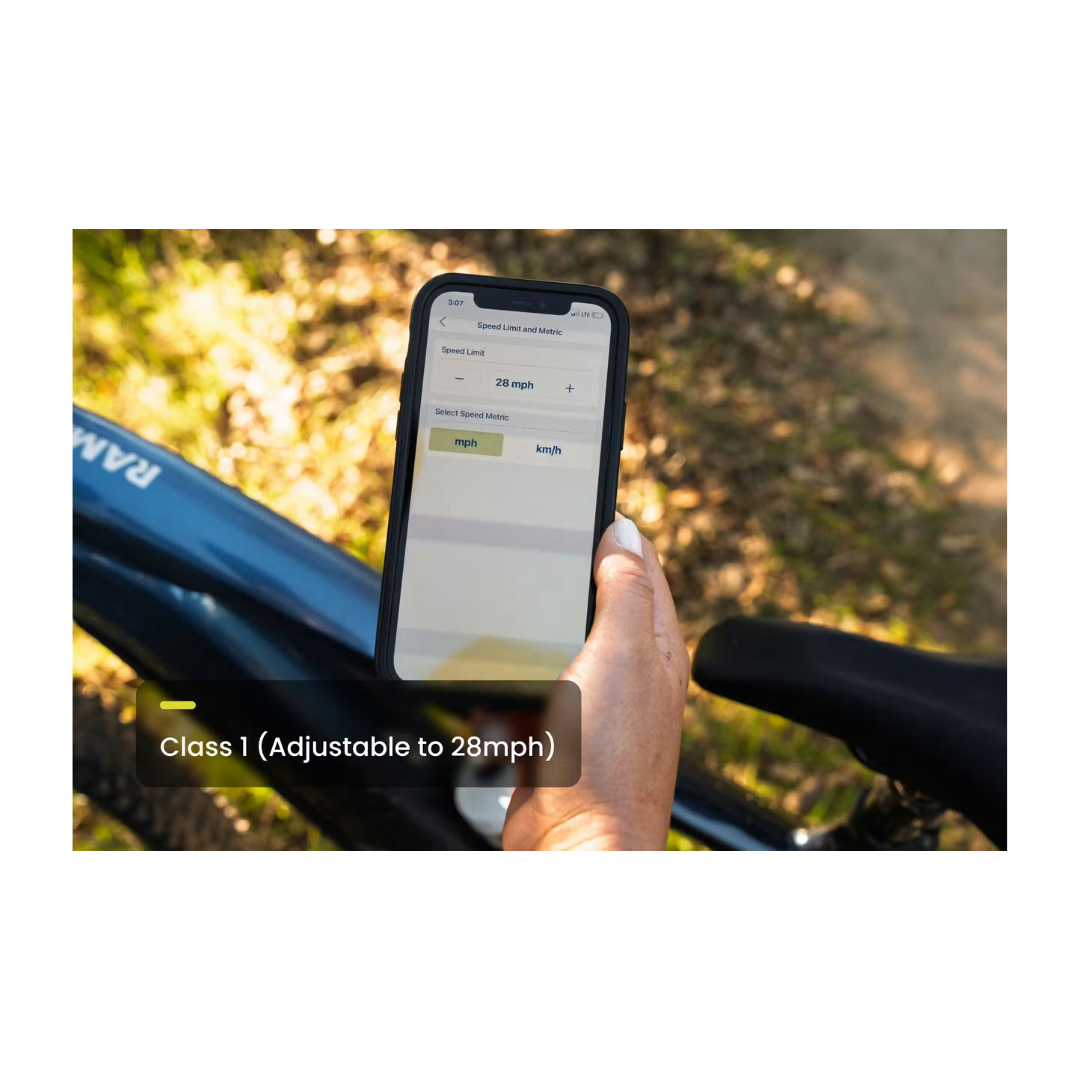

Ramblas comes out of the box as a Class I ebike, with pedal assist. The bike is adjustable to Class 3 in the Aventon MyRide app and is not throttle compatible. The bike is rated at an IP67 waterproof rating, meaning it can be fully submerged for short periods of time.
