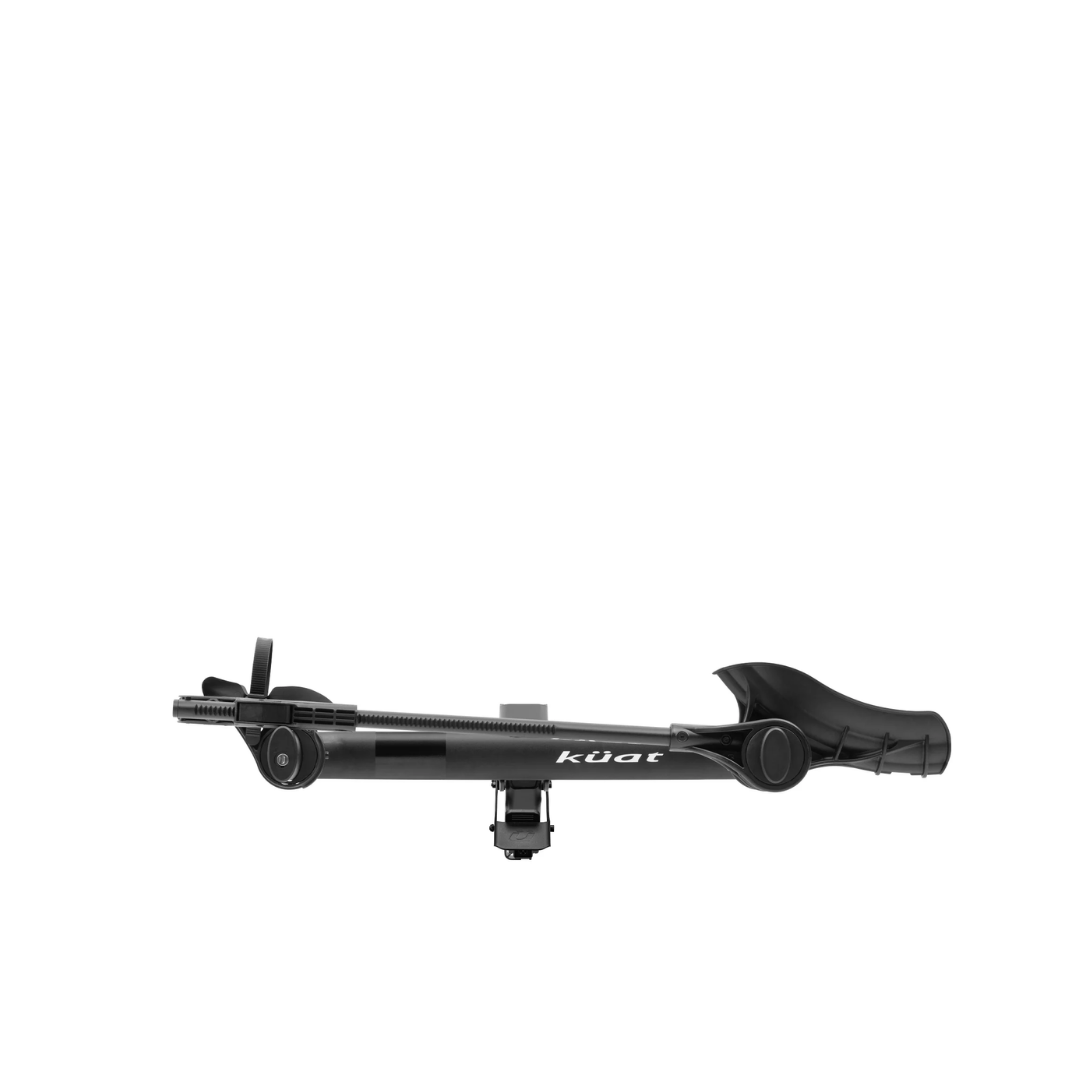

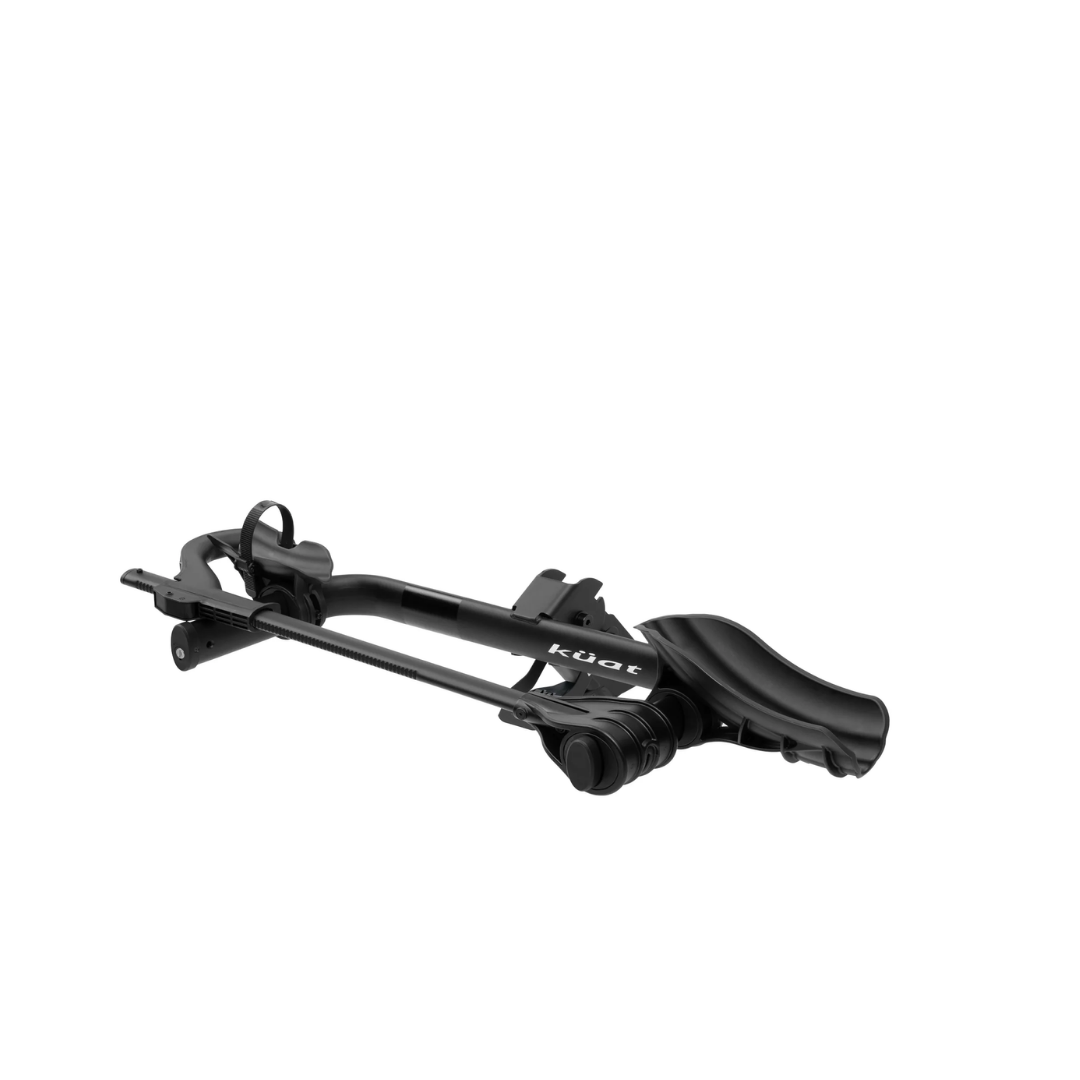

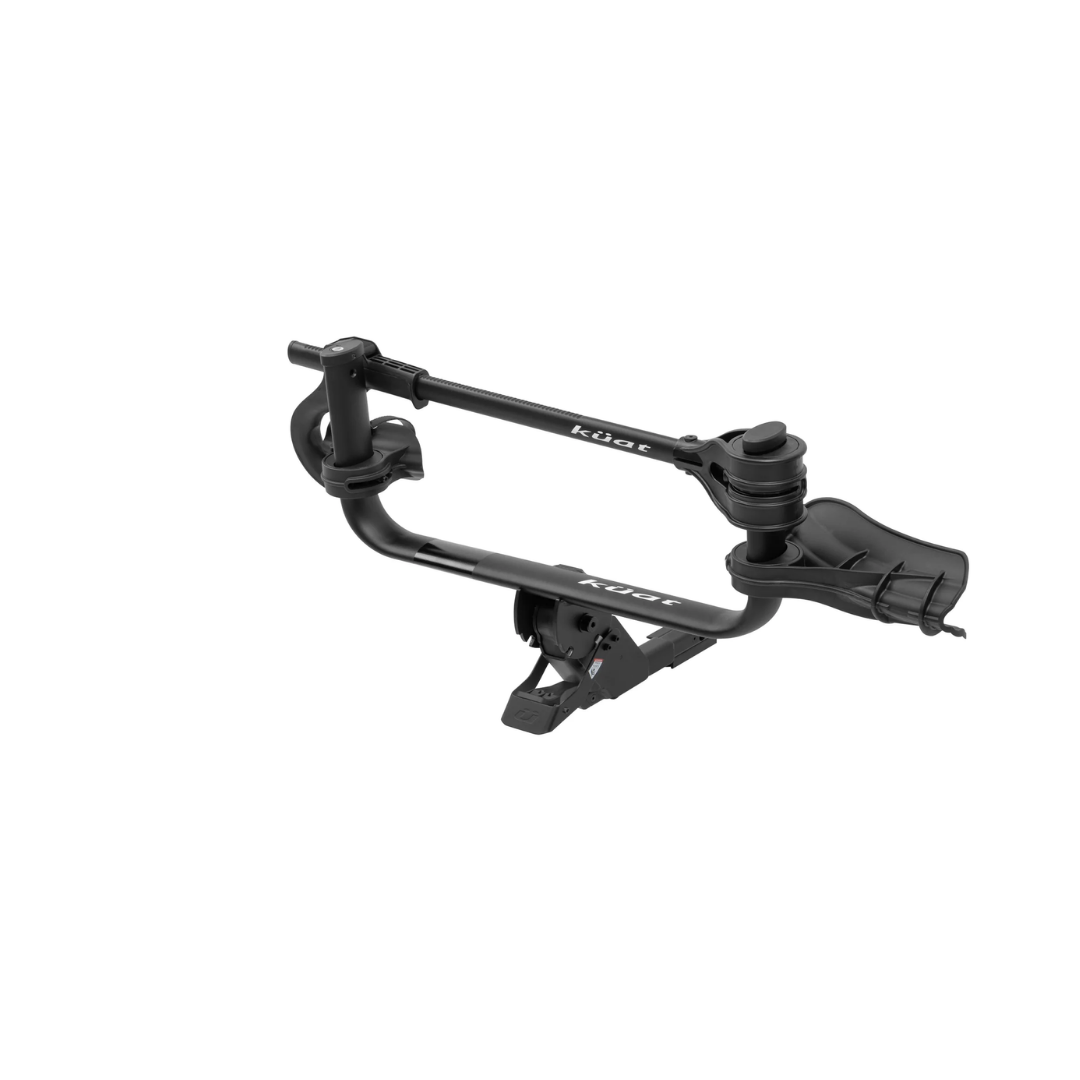

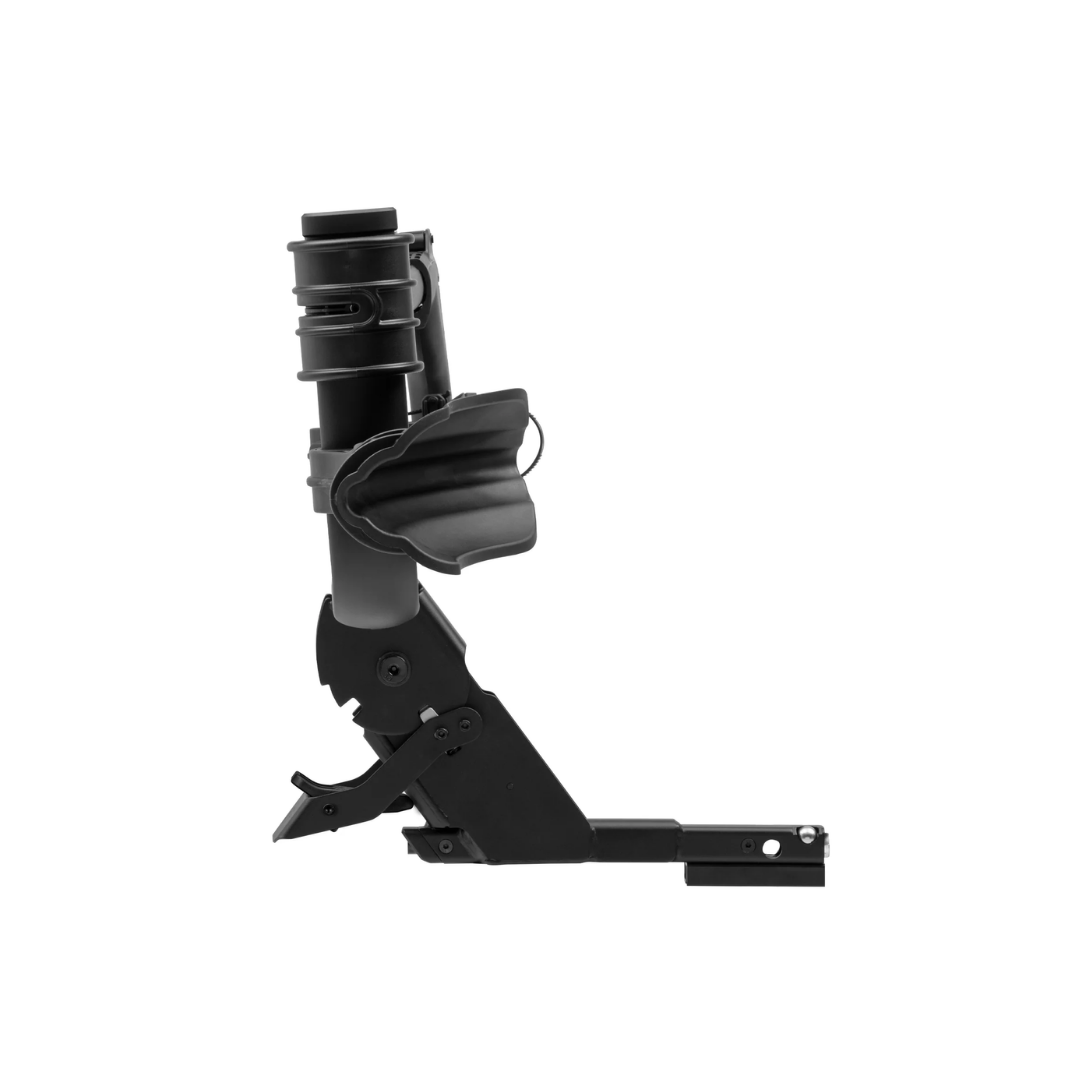

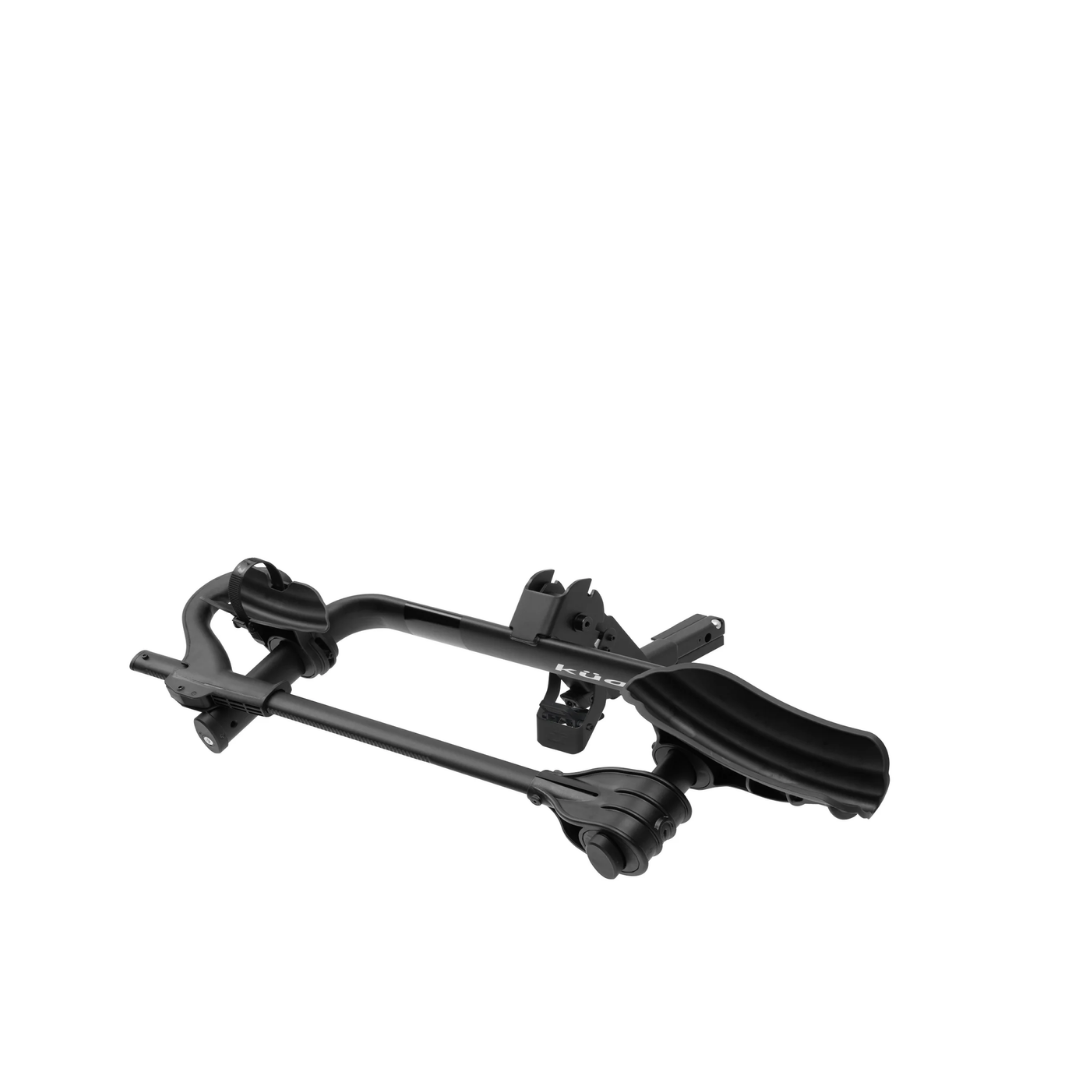

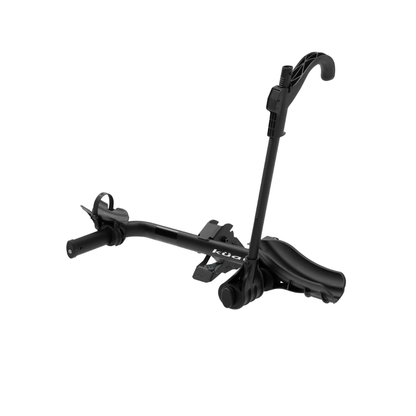

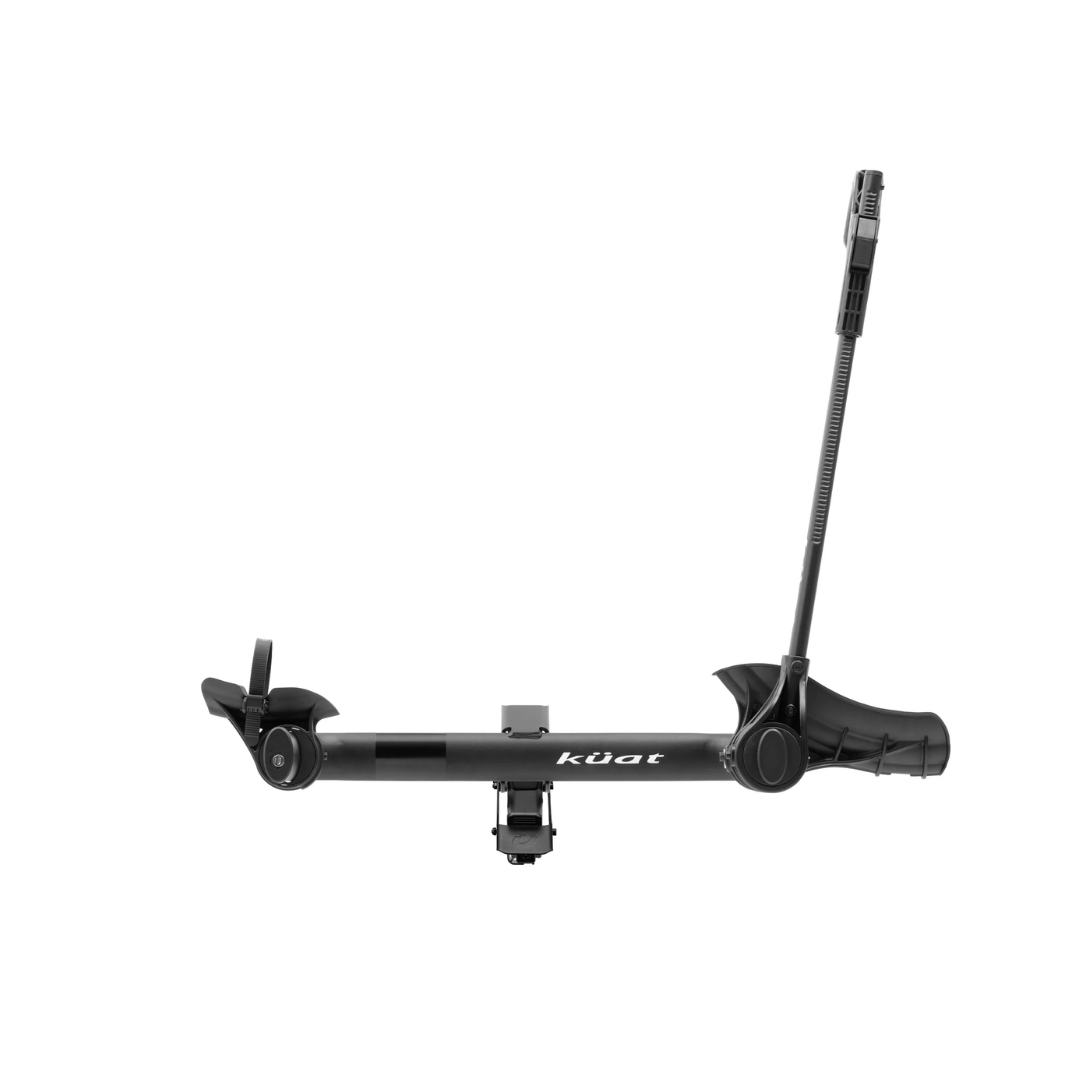

Kuat | Transfer v2

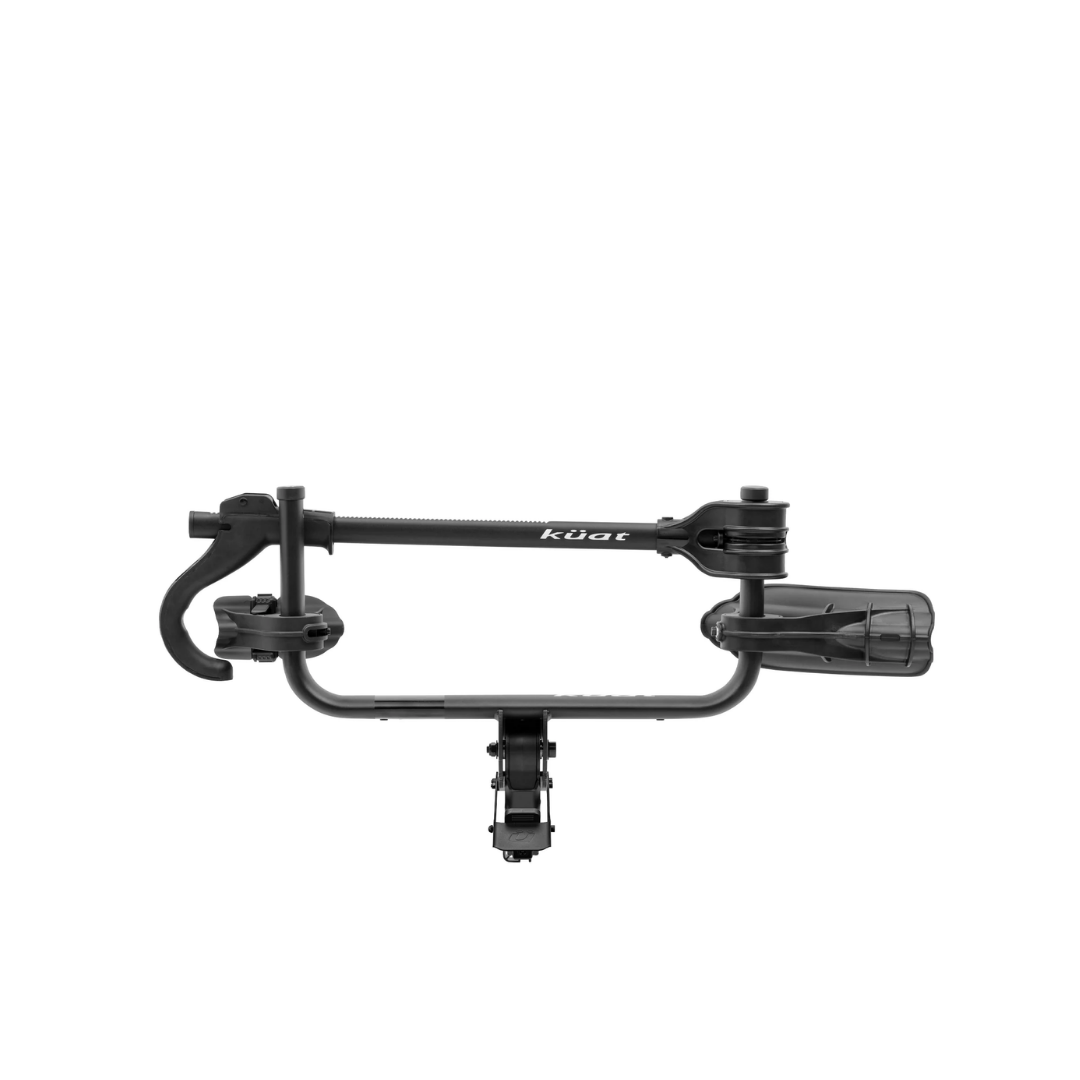

1-Bike Rack
1.25” (with Ball Cam), 1-Bike: 60 lbs.

2” (with Flatlock Cam), 2-Bike: 60 lbs. per tray

2-Bike Rack
1.25" (with Ball Cam, 2” adapter included) 2-Bike: 40 lbs. per tray

2” (with Flatlock Cam), 2-Bike: 60 lbs. per tray

3-Bike Rack
2” (with Flatlock Cam), 3-Bike: 40 lbs. per tray

Transfer v2 Add-On (1-Bike or dedicated 2” models only)
1-Bike Add-On will reduce your carrying weight capacity, unless you are using the 2”, 3-Bike configuration.

The dedicated 2” Transfer (2-Bike) v2 is RV Compatible if:

1. The receiver hitch is directly attached to the RV chassis, not just to the bumper; and
2. The bicycle rack is in a 2-bike configuration with no add-on unit attached; and
3. The weight capacity does not exceed more than 40 lbs. per tray; and
4. No hitch extender or swing-away rack attachment is being used.

All other configurations of the Transfer v2 (including the 1.25" with and without hitch adapters) are only compatible with some Class B chassis, such as camper vans.

1-Bike Rack
1.25”, 1-Bike: 28 lbs.

2-Bike Rack
1.25", 2-Bike: 35 lbs.
2", 2-Bike: 37 lbs.
2", 3-Bike: 51 lbs.

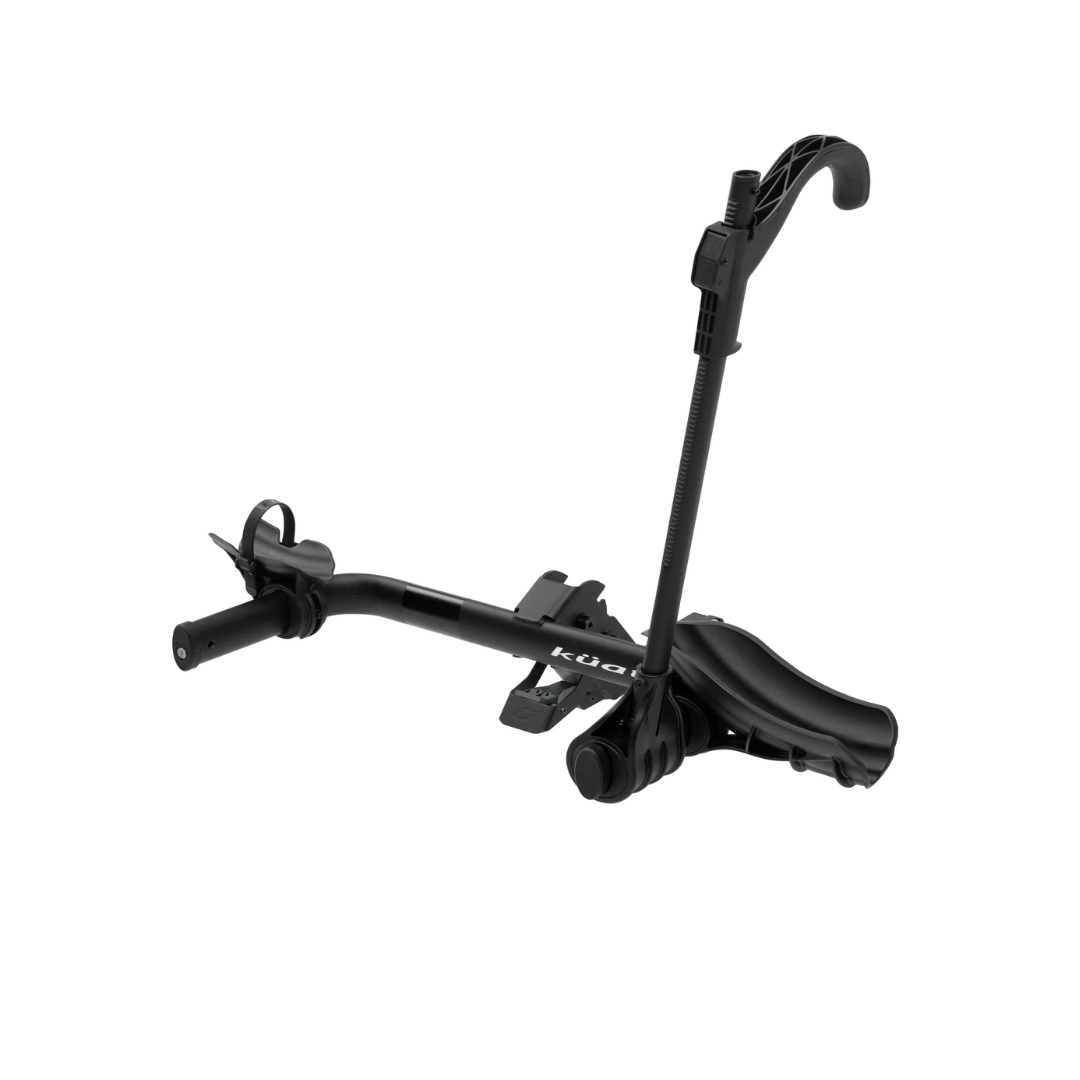

Transfer v2 Add-On
+1-Bike Add-On: 11 lbs.
