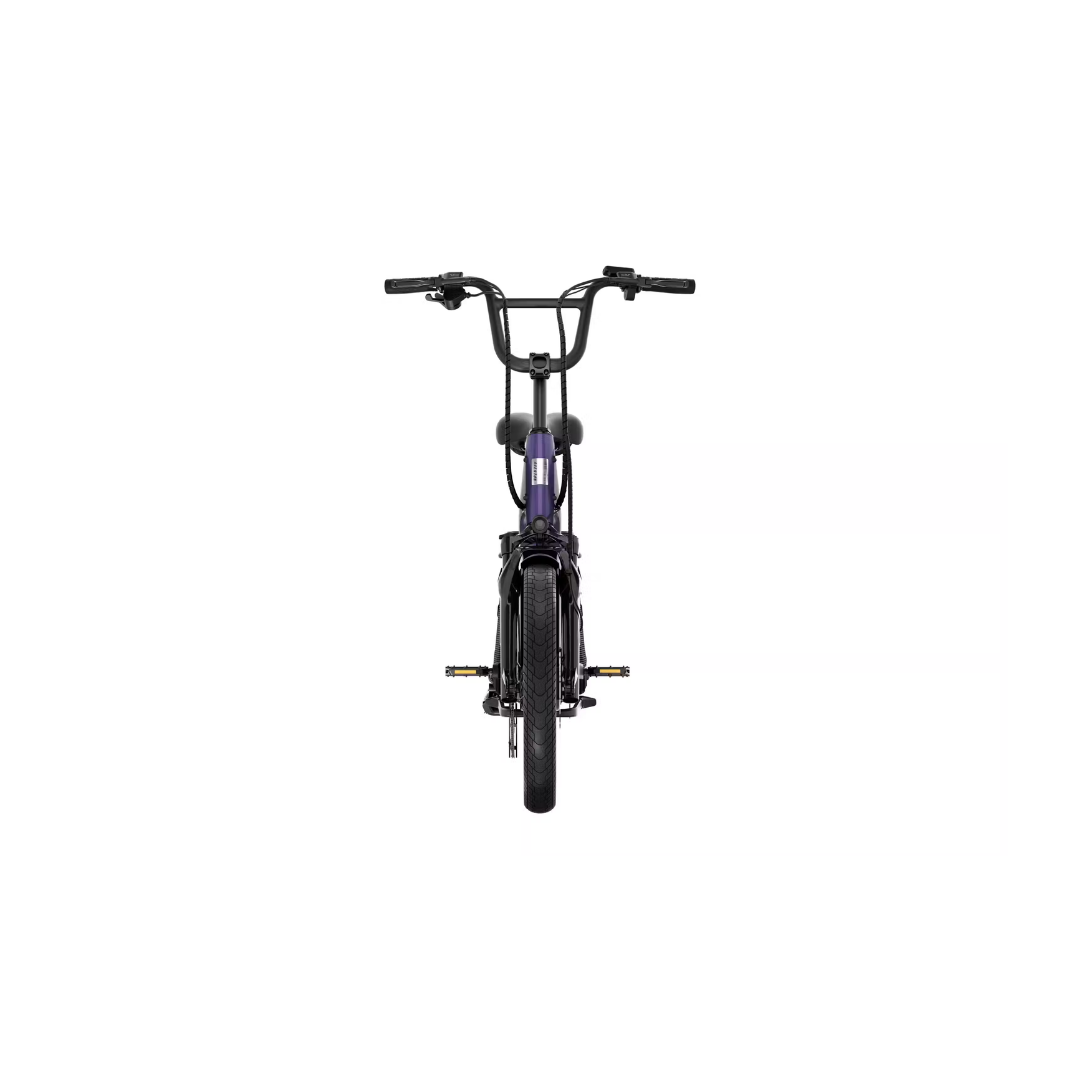

Aventon | Abound SR eBike
Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind. Outfitted with an adjustable quill stem, suspension seat, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road. It’s SRsly fun.
Pairs well with
Aventon | Abound SR eBike
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

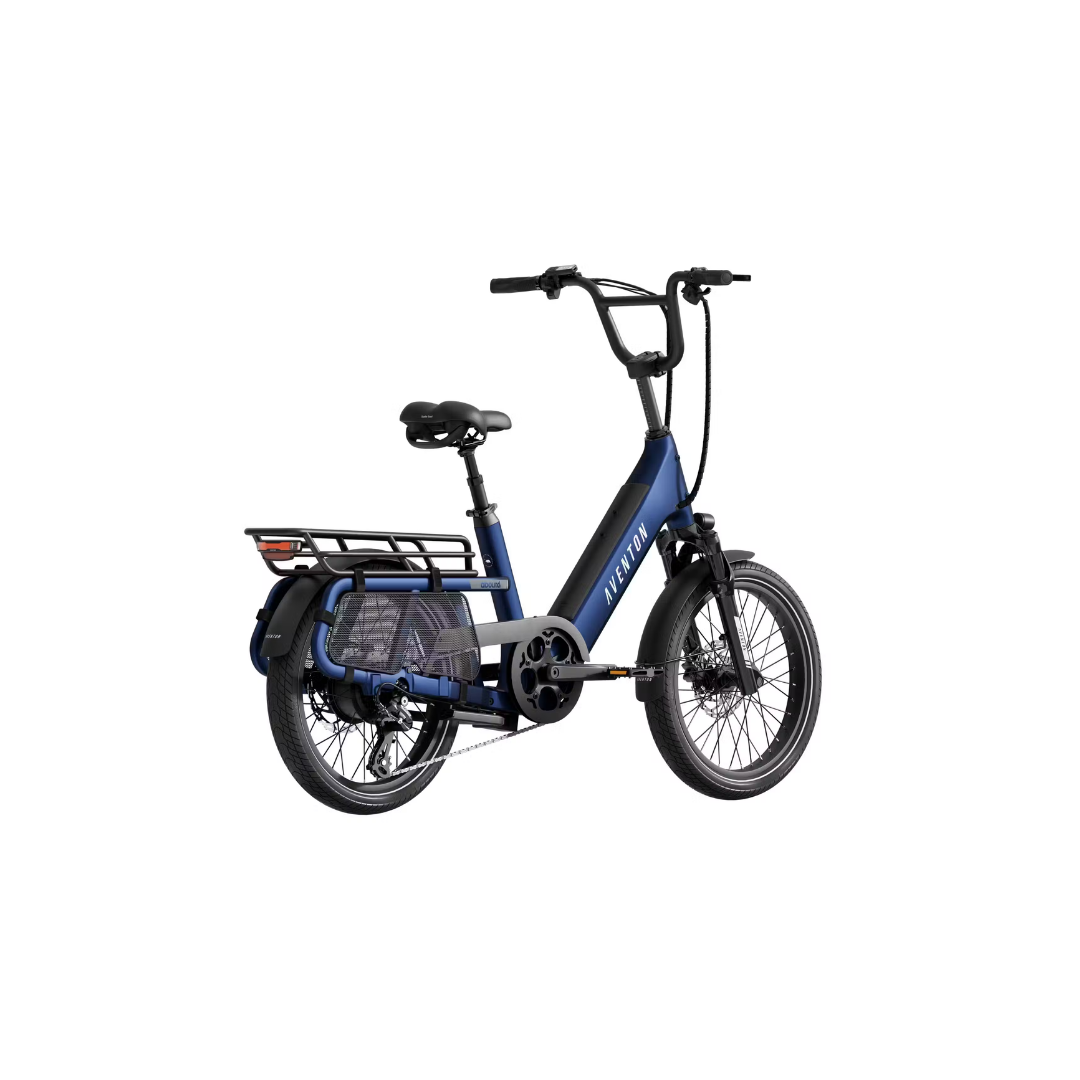

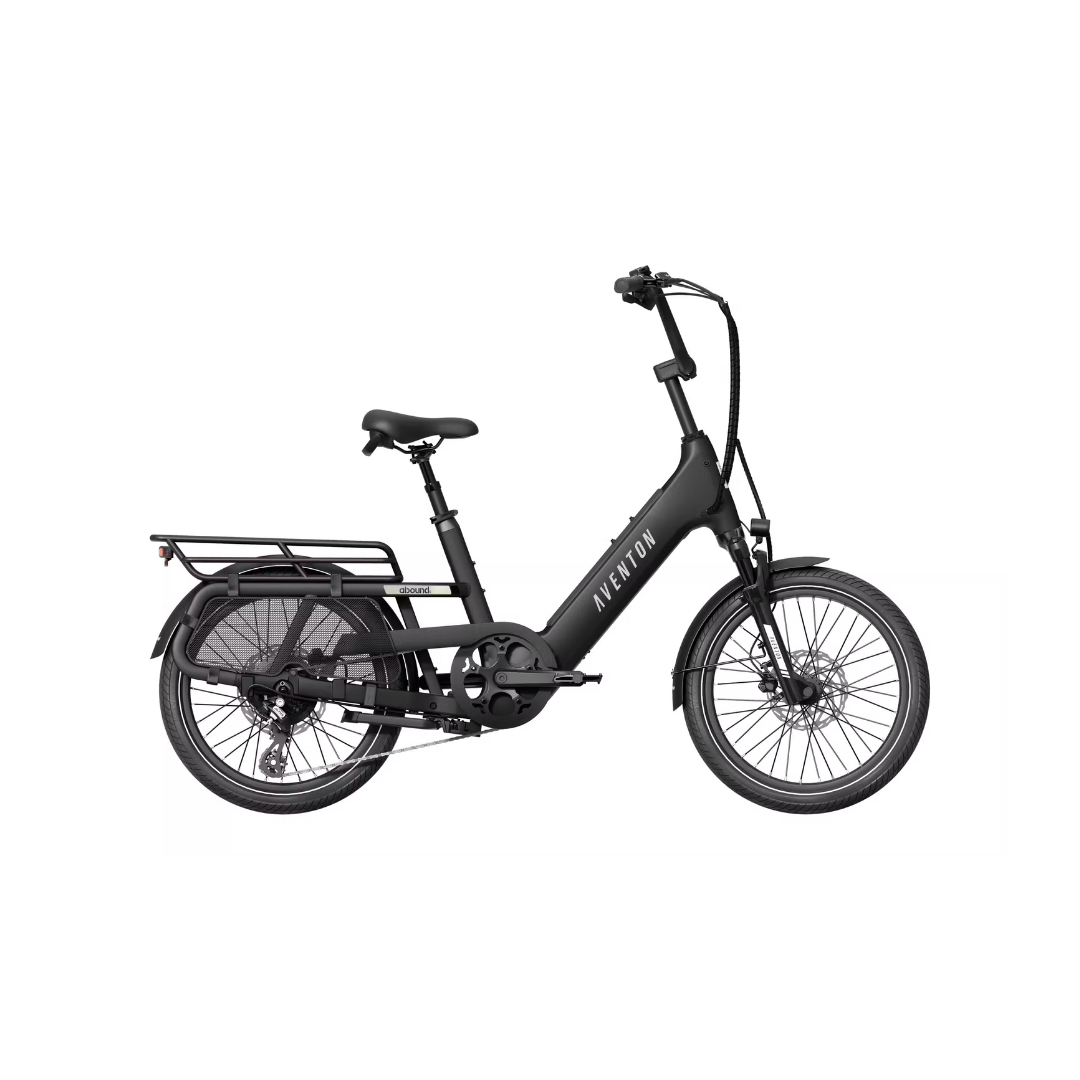

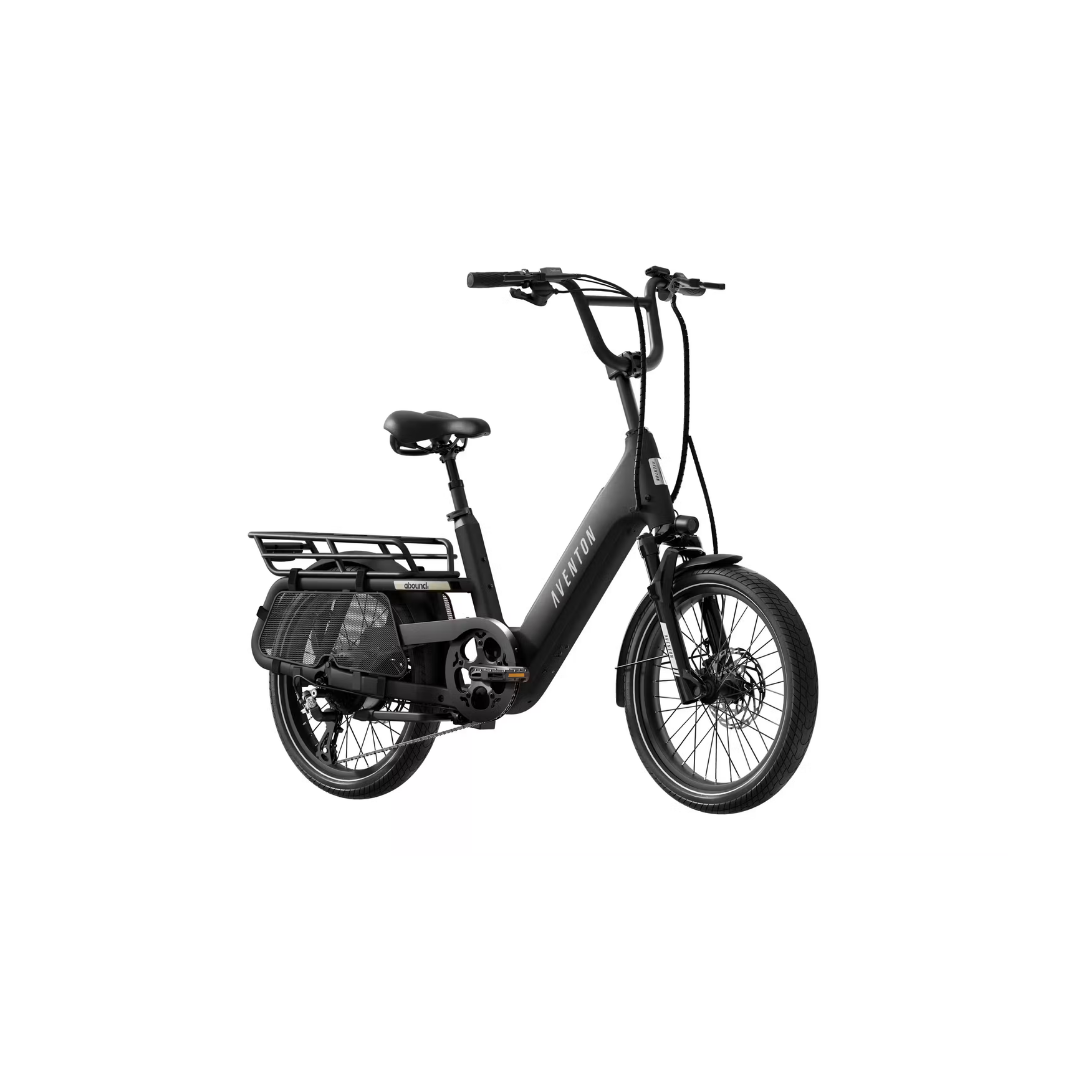

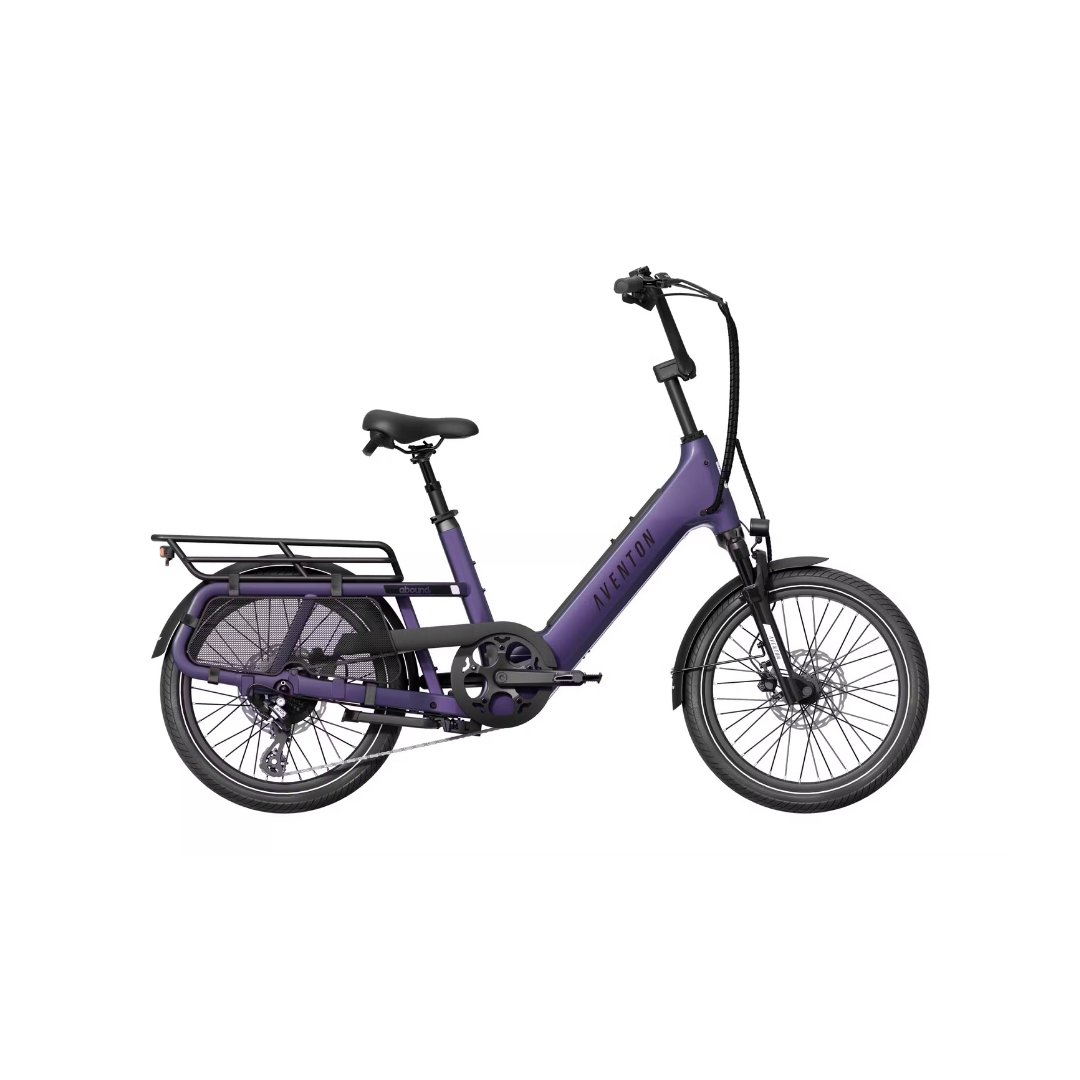

Abound SR
Compact cargo bike with added security features.
Technical Specifications
- Weight 80 lbs
- Total Weight Limit 440 lbs
- Rider Height Range 4'11" – 6'3"
- E-Bike Class Class 2 Ebike
- Ideal Use Cargo & Utility
- Pedal Assist 3 Levels (with Ride Tune Customization)
- Safety Certifications UL and TÜV Safety Certified – UL 2849
- Battery Safety Certifications UL 2271 Certified
- Range Up to 60 miles (PAS 1, 160 lb rider, flat terrain)
- Folding No
- Carry Capacity Single Passenger
- Water Resistance Bike – IPX5 // Components – IPX6
- Frame Style Step-Through
- Frame 6061 Aluminum Alloy with Internal Battery (one-piece die-cast front triangle)
- Fork Threaded Steerer Tube for Quill Stem, 15×110 spacing, 50 mm travel, adjustable lockout, black stanchions
- Wheels 20 in × 3.0 urban tires with reflective sidewalls • 12-gauge, 36-hole, double-wall aluminum

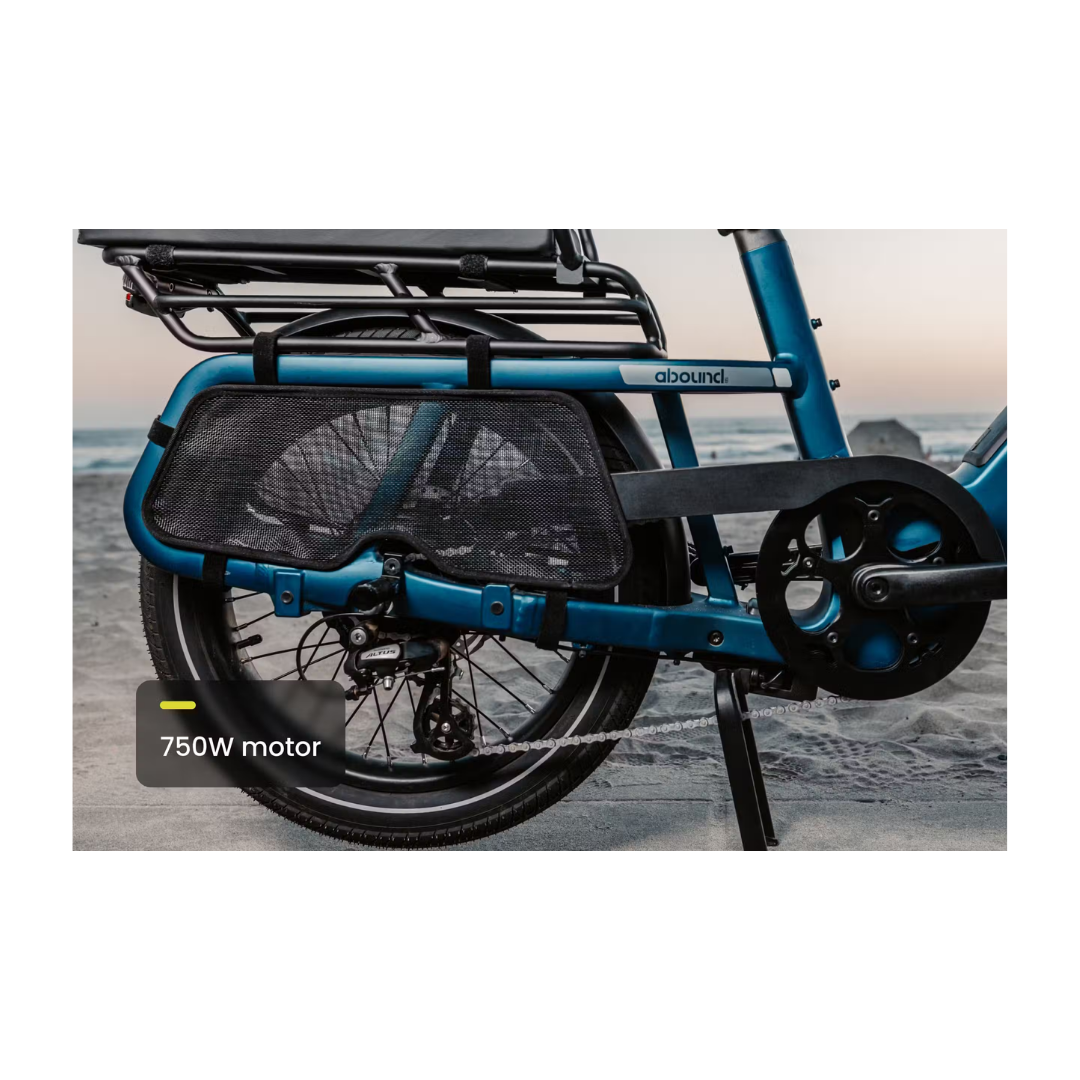

- Motor Shengyi 36 V 750 W Hub Drive (1188 W peak) with 6 speed sensors
- Motor Torque 80 Nm
- Battery Aventon 36 V 20 Ah (733 Wh) LG 21700 cells
- Charger Aventon 4 A 42 V

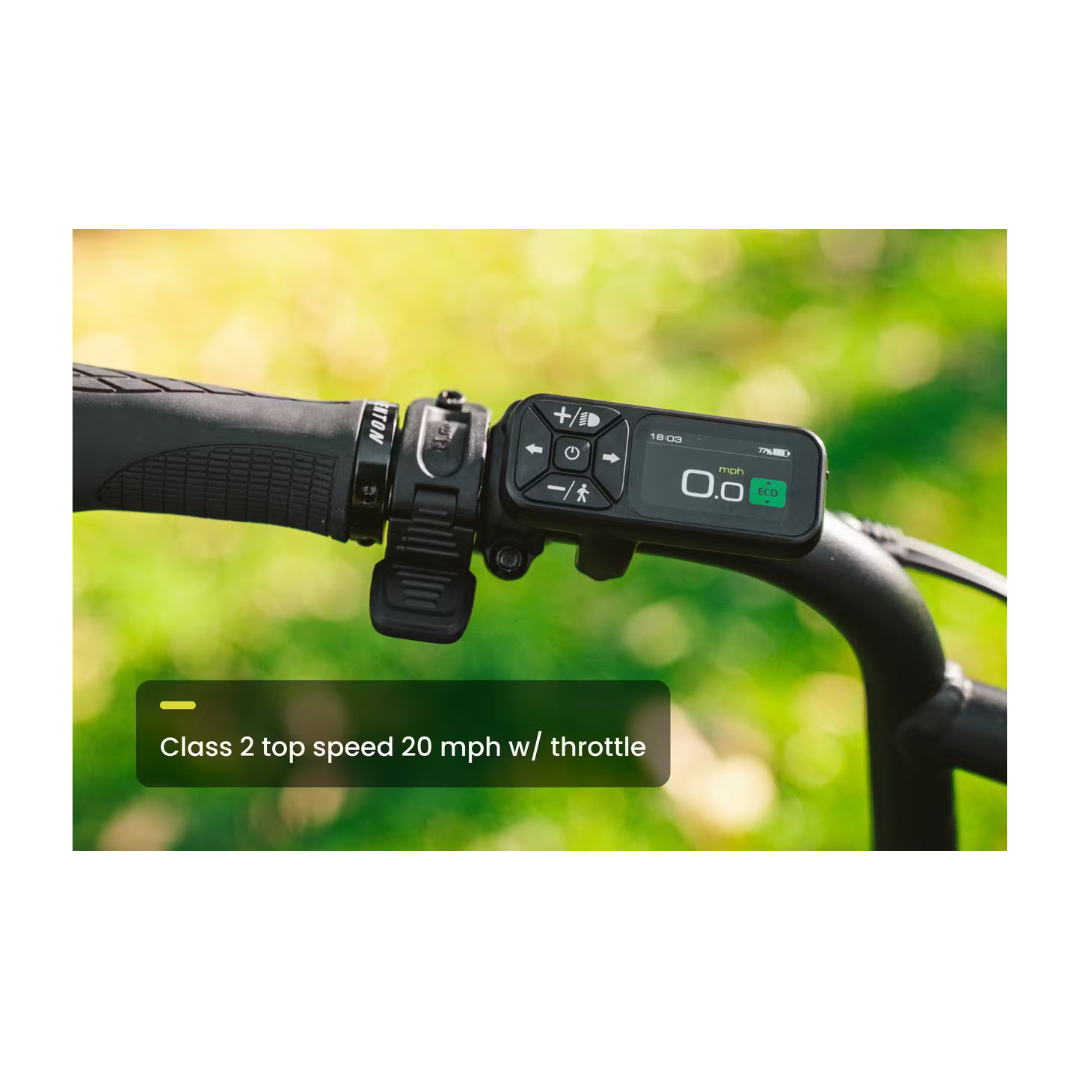

- Display Aventon BC147
- Throttle Aventon LH Handlebar-Mounted
- Sensors Double-Sided Bottom Bracket Torque Sensor
- ECU Aventon ECU Module with wired CAN communication, GPS support, Bluetooth & cellular connectivity
- Speed 20 mph max with throttle & pedal assist, pedal assist adjustable to 25mph.
- Front Brake Tektro HD-E3520 Hydraulic Disc Brake – 180 mm Rotor
- Rear Brake Tektro HD-E3520 Hydraulic Disc Brake – 203 mm Rotor
- Drivetrain Shimano Altus 8-Speed (12-32 T Cassette) • 52 T Chainring • 165 mm Crank Arms
- Chain 122-Link 8-Speed
- Shifters Shimano SL-M315-8R
- Pedals 9/16" Composite Platform
- Saddle Aventon by Selle Royal

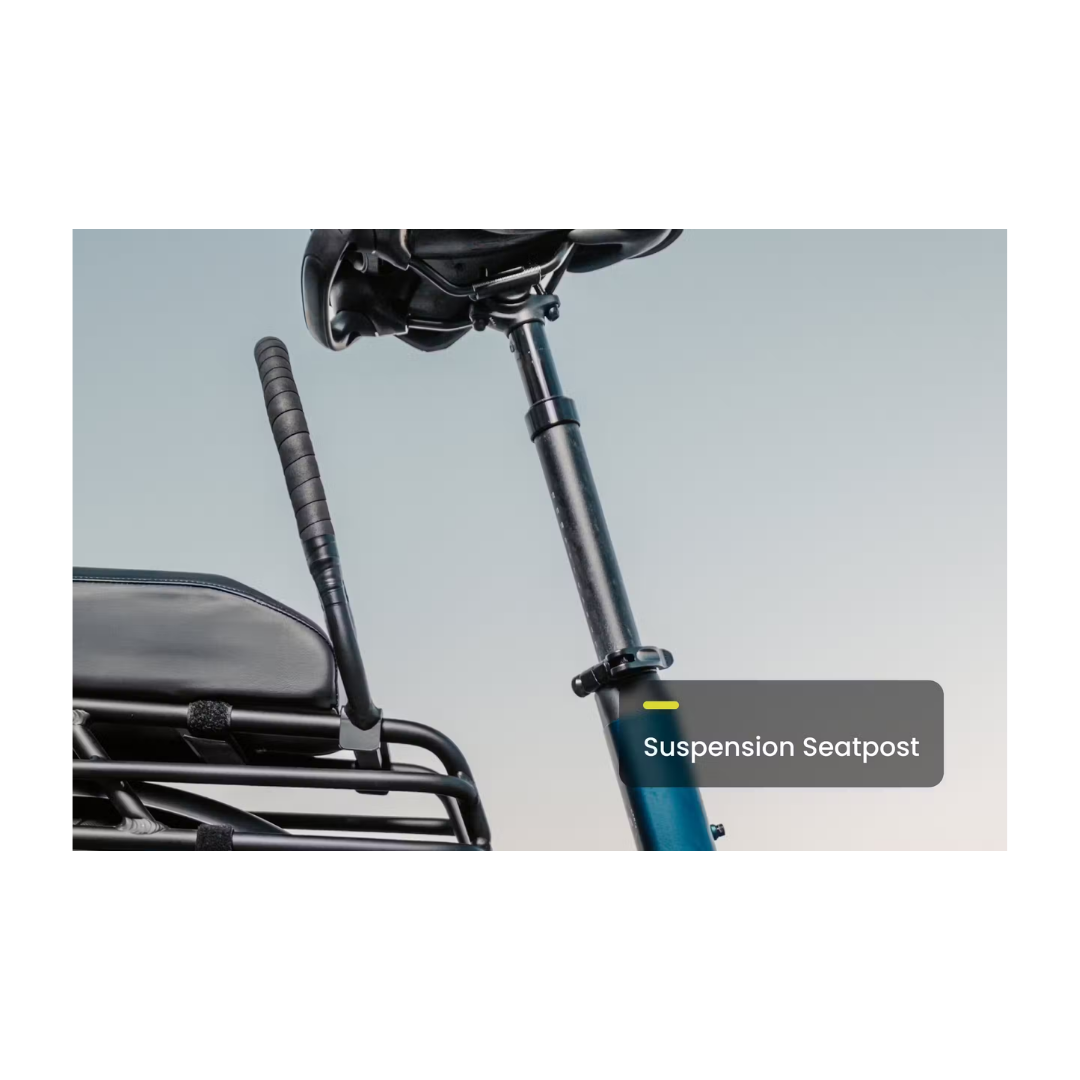

- Seatpost 30.9 mm Aventon Suspension Seatpost (50 mm travel)
- Handlebars BMX-Style (31.8 mm clamp, 680 mm width)

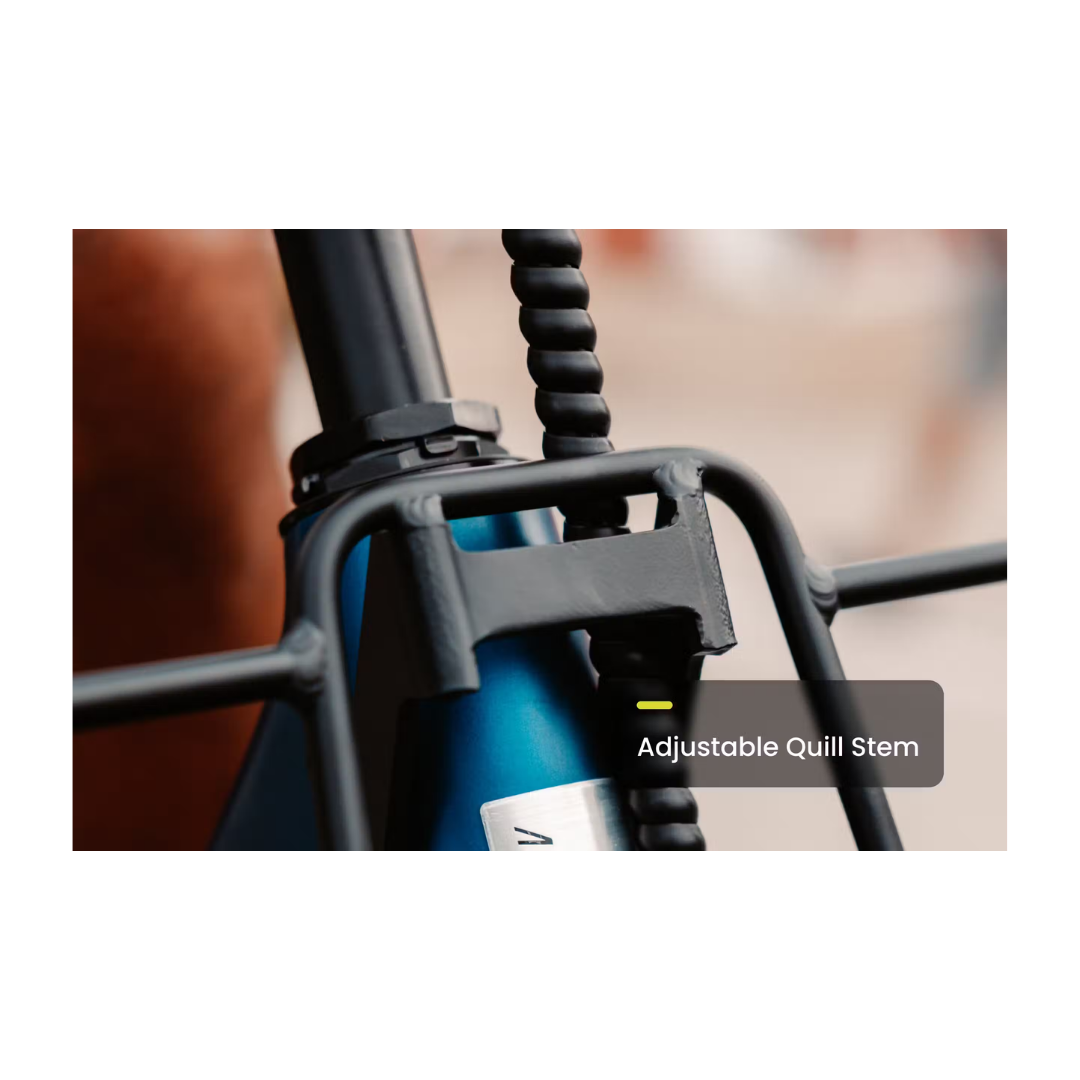

- Stem Quill Stem (31.8 mm clamp, 40 mm length, 140 mm vertical adjustment)
- Seat Clamp 34.9 mm Quick Release
- Grips Lock-on Ergonomic
- Rear Rack Included (143 lb weight limit)
- Kickstand Included E-Lock
- Rear Wheel Mesh Guards Included
- Certifications Summary UL 2849 (Ebike) • UL 2271 (Battery) • IPX5 Water-Resistant
- Technical Overview The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
